4U Rackmount 7x ISA Slot 366MHz Computer

RM4AT02

7 ISA slots, 366MHz CPU, and 128MB hard-wired SRAM Heavy duty steel electroplated chassis with a -20° – 60°C operating temperature insure harsh environment reliability.

  • 7x ISA slots
  • Hard-wired 366MHz CPU
  • Hard-wired 128MB on-board memory
  • Bootable CF II card slot
  • SATA and IDE interface
  • 300W Power Supply, Standard
  • USB
  • DIO and watchdog timer
  • EIA RS-310 19″ Rackmount Standard
  • Washable air filter

Description
Additional information
Specifications
Customize This Product
Downloads & Drivers
Reviews (0)

ISA Design

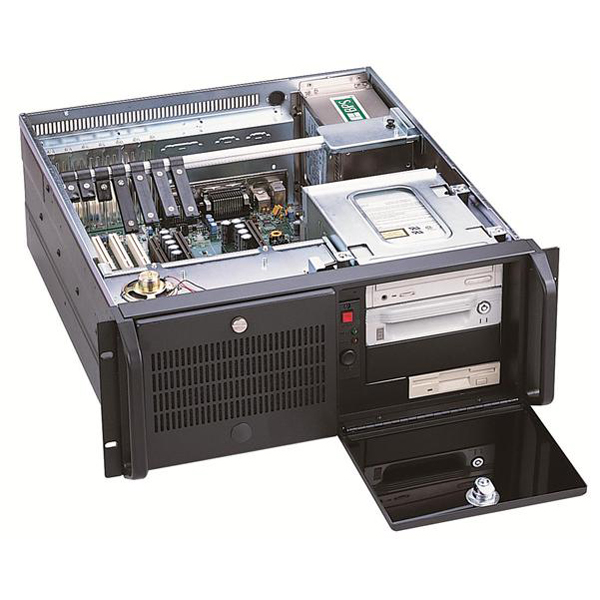

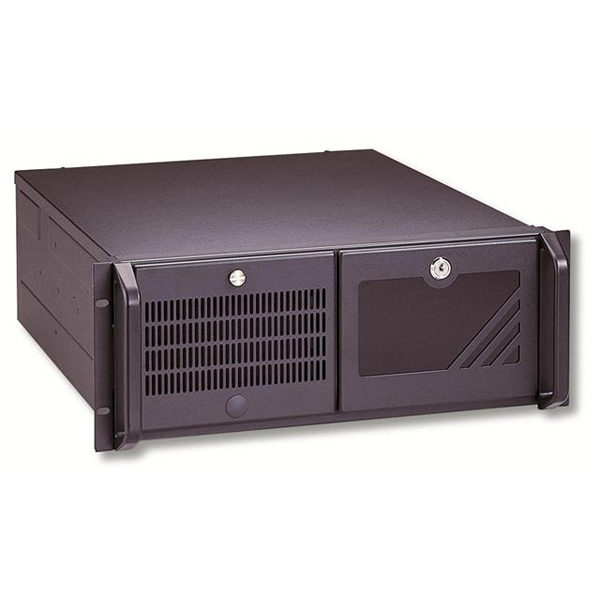

7x ISA slots with hard-wired 366MHz CPU and 128MB SDRAM memory expandable to 640MB.  This heavy duty, cold rolled, electroplated steel chassis has two doors; one with a key lock and a filter door with a thumbscrew. Add-in card hold-down bar with individually adjustable fingers to keep cards solidly in place during movement or shipping.






Legacy Performance

7x ISA slots with both SATA and IDE interfaces and a secure bootable internal CF II card slot.  128MB of SDRAM memory comes securely hard-wired to the SBC.  Memory expandable by 512MB.  Integrated VGA and TFT display outputs.  300W ATX power supply, 1x floppy drive header, and familiar Award BIOS.




Targeted I/O

1x 10/100Mbps Realtek RTL8100C Ethernet, 2x RS-232 COM ports (1 internal), 8-bit digital I/O, and software programmable watchdog timer.

Additional Memory

None, 128MB SDRAM Memory, 512MB SDRAM Memory

Compact Flash II Card

None, Compact Flash Card, 64MB, Compact Flash Card, 128MB, Compact Flash Card, 256MB

IDE Data Storage

None, IDE DOM, 1GB, IDE DOM, 2GB, IDE DOM, 4GB

SATA Data Storage

None, 500GB HDD, 1TB HDD, 120GB SSD, 480GB SSD, 1TB SSD

Floppy Drive

None, 1.44MB 3.5" Internal Floppy Drive

LPT

None, LPT port on bracket

Extra RS-232 port

None, RS-232 port on bracket

Software

None, Software preload

Specifications

Column 1Column 2
ModelRM4AT02
System

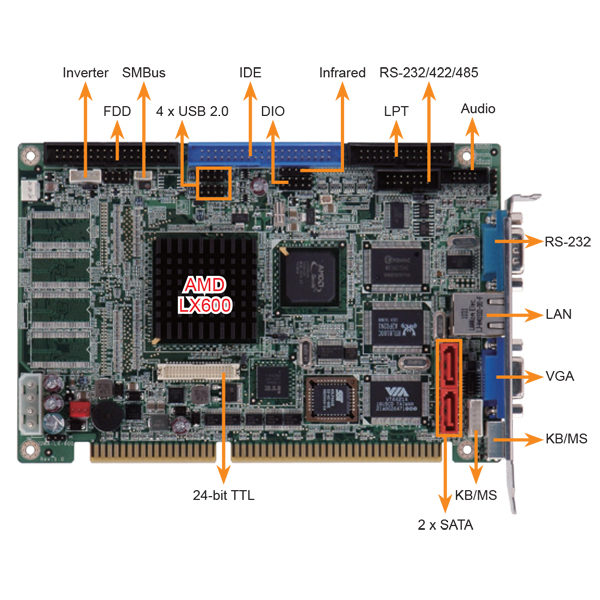

ProcessorOn-board AMD Geode™ LX600 processor (366 MHz), 128KB L2 cache
ChipsetAMD Geode™ CS5536
GraphicsVGA integrated in the AMD Geode™ LX600

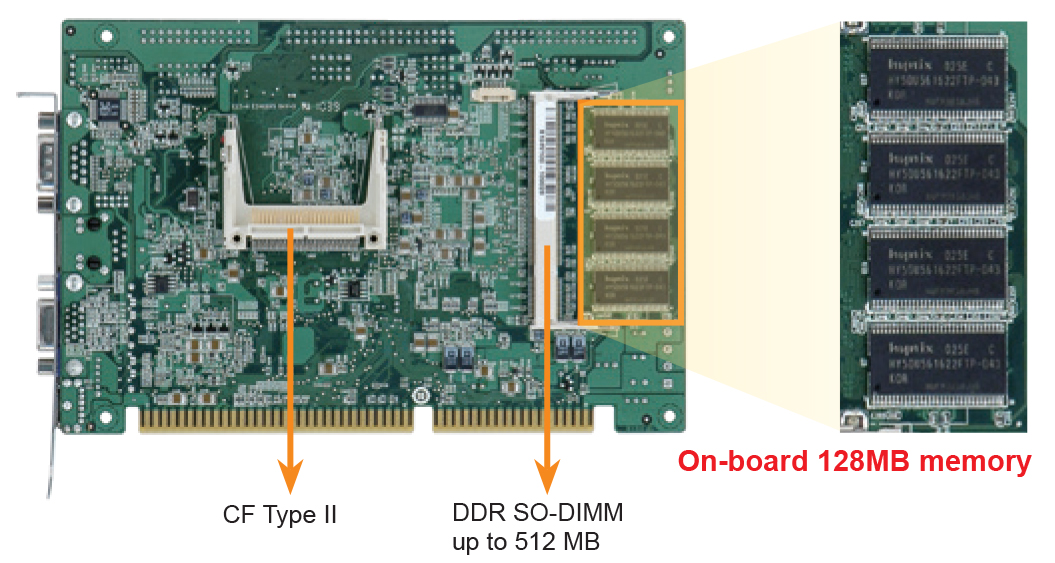

MemoryOn-board 128MB DDR 266/200 MHz memory
One 200-pin 266/200 MHz DDR SDRAM SO-DIMM slot supporting up to 512MB
BIOSAward
Watchdog TimerWatchdog Timer: Software programmable supports 1~255 sec. system reset
I/O Internal
USB2x USB 2.0
Video1x TFT (up to 1600x1200), Single HD VOP 2.0 output
Serial1x RS-232/422/485 (2x7 pin, P=2.54)
AudioRealtek ALC203 with AC’97 codec
1x Front audio (2x5 pin)
Infrared Interface1x Infrared Interface (1x5 pin)
Other1x KB/MS (1x6 pin)
1x LPT (2x13 pin)
I/O External
Ethernet10/100Mbps Realtek RTL8100C Ethernet controller rear
USB2x USB 2.0 on front
Serial1x RS-232 rear
Video1x VGA (up to 1920x1440) rear
Keyboard/Mouse1x KB/MS rear
Expansion Internal
ISA Bus7x ISA slots
Digital I/O8-bit digital I/O (2x5 pin)
Storage
SATA HDD2x SATA (RAID 0/1)
IDE1x IDE (2x10 pin)
Compact Flash1x CF Type II bootable slot
Power
Power Supply5V/12V, AT/ATX support
SwitchesPower ON/OFF Momentary (Pushbutton),
IndicatorsLEDs for power ON/OFF, HDD activity
Mechanical
Dimensions19" (W) x 7.0" (H) x 20.1" (D)
Weight43.5 Lbs
Enclosure
MaterialHeavy duty, cold rolled, electroplated steel
Bays3x 5.25" & 1x 3.5"
Environmental
Operating Temperature-10°C ~ 60°C
Storage Temperature-20°C ~ 70°C
Humidity5%~95% , non-condensing
Air FilterWashable air filter behind door
Fans1x 120mm, 108CFM fan & opening for optional 120mm Fan
