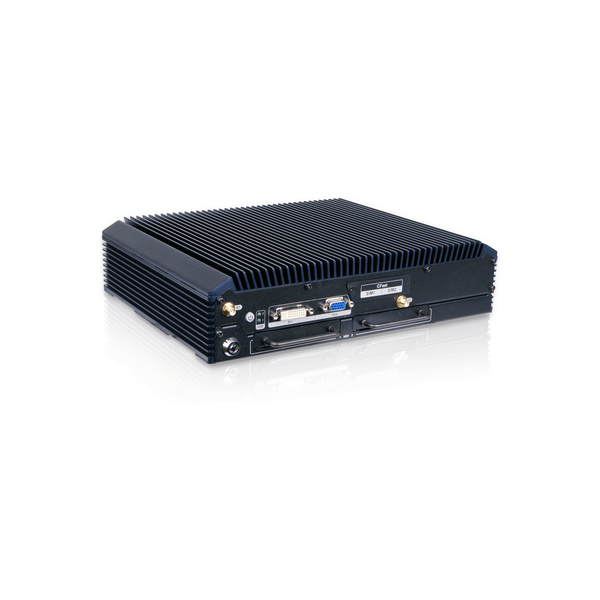

Rugged Fanless Rolling Stock Computer

IRS-100-ULT3

The IRS-100 is EN 50155 compliant and meets the requirement for railway environments. Endowed with multi-functional capability, it is not only a surveillance system but also an entertainment system and functions as a control unit, passenger information system (PIS) and network video recorder (NVR).  IP cameras can also be integrated to provide real time video monitoring to ensure passenger safety.

  • Long Life Cycle Intel® 6th-Gen Skylake ULT processor
  • Dual M12 GbE ports
  • VGA / DVI dual display
  • Dual SIM card design
  • 24V / 110V DC input
  • 2 x 2.5″” hot-swappable SATA SSD drive bay
  • EN 50155

Description
Specifications
Customize This Product
Reviews (0)

Multi-functional and Railway Ready

Focused on the rolling stock market, the IRS-100 incorporates a variety of advanced technologies including multiple bays for data storage, lockable connectors, GPS function and Wi-Fi for wireless communication.  At 2.7 inches high, the IRS-100 can fit in the most restrictive spaces and the fanless design, extended operating temperature and Isolated COM/DIO connectors offer protection in a static prone railway environment.






A Workhorse Built to Last

The IRS-100 is equipped with dual SIM slots able to automatically switch between two different networks to maintain seamless connectivity in remote areas. The system supports PRS / UMTS / HSDPA / LTE transmission technologies. The long life cycle Intel® Skylake i5-6300U CPU at 15W TDP, contributes to a staggering -40°- 70° C system operating temperature compliant with EN50155. Additionally, the IRS-100’s DDR4L memory offers lower power consumption and reduced latency over its DDR3 predecessor.




I/O You Can Count On

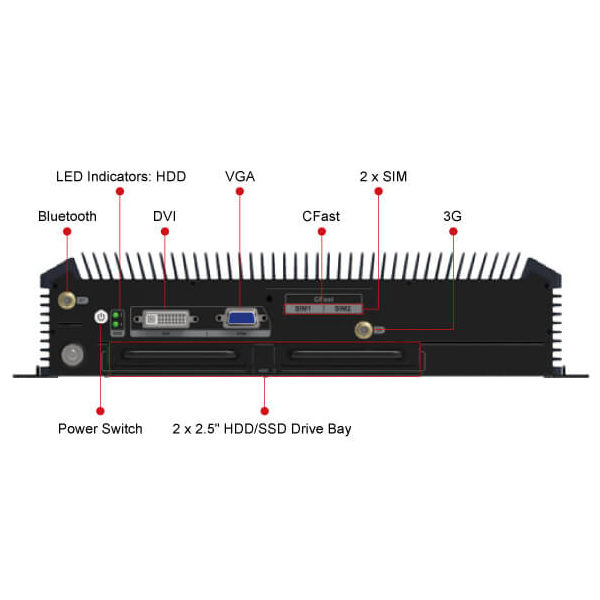

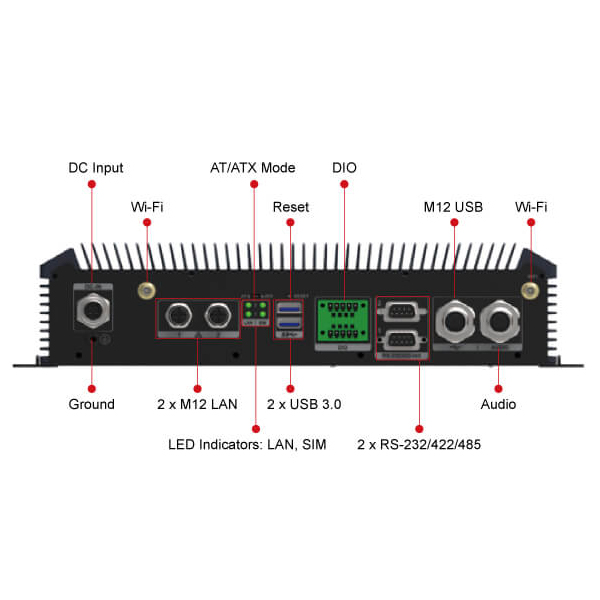

Critical I/O connectors are grouped together for easy access. 2x RS232 and 4-bit in/4-bit out DIO connectors incorporate 1.5 kV isolation. 2x M12 PCIe GbE connectors share an Intel® I1211 controller.  USB is addressed with a protected M12 USB 2.0 connector and 2x USB 3.0 connectors. 1xVGA and 1x DVI-D are located together on the opposite side of the unit. 2x 2.5 inch 6 GB/s SATA drive bays ensure plenty of storage. Bus expansion includes 2 x Full-size Mini PCIe (for WWAN / WLAN modules).

Specifications

Column 1Column 2
ModelIRS-100-ULT3-ix/4G-R10
System
ProcessorSupports Intel® 6th-Gen Core™ Skylake i7/i5 BGA1356 CPU
Intel® Core™ i7-6600U processor (dual-core, 3.4 GHz, 15W TDP)
Intel® Core™ i5-6300U processor (dual-core, 2.4 GHz, 15W TDP)
ChipsetSoC
Memory2 x 260-pin DDR4 SO-DIMM, 4GB pre-installed (system max. 32 GB)
Communication
WLANPCIe Mini Wi-Fi 802.11 a/b/g/n/ac (optional)
BluetoothBT 4.0/3.0+HS (combo with WLAN optional module)
WWANPCIe Mini WCDMA/HSDPA/HSUPA (optional)
I/O External
Ethernet2 x M12 connector PCIe GbE by Intel® I211
USB2x USB3.0
1x USB2.0 (M12 connector)
Video1x VGA up to 1920 x 1200 @60Hz
1x DVI-D up to 1920 x 1200 @60Hz
Serial2 x DB-9 RS-232/422/485 (with 1.5 kV isolation)
Digital I/O1 x Terminal block for 8-bit digital I/O (4-bit input/4-bit output, 1.5 kV isolation)
Audio1 x Line-out, 1 x Mic-in
Expansion Internal
Mini-PCIe2 x Full-size PCIe Mini (for WWAN / WLAN module)
Storage
SATA HDD1 x 2.5" SATA 6Gb/s HDD/SSD bay
CFast/CF Card1 x CFast (SATA 6Gb/s)
mSATA1 x mSATA (SATA 6Gb/s)
SIM2 x SIM card slot
Power
DC InputM12 Connector: 24V and 110V DC input
Consumption24V @ 2A (Intel® i5-6300U with 4 GB DDR4 memory)
Mechanical
Dimensions290 x 69 x 225 (WxHxD) (mm)
Weight3.9 kg / 5.1 kg
MountingWall mounting
Enclosure
MaterialExtruded aluminum alloy
Environmental
Operating Temperature-40°C ~ 70°C with air flow (with industrial SSD/CF), compliant with EN 50155
Storage Temperature-40°C ~ 85°C
Humidity10% ~ 95%, non-condensing
Operating ShockCompliant with EN 61373 Category 1 Class B
Operating VibrationCompliant with EN 61373 Category 1 Class B
CertificationsCE/FCC, compliant with EN 50155, EN 50121-3-2
Supported OSMicrosoft® Windows® Embedded 8, Microsoft® Windows® Embedded Standard 7 E
