4U Rackmount ATX 5xPCIe & 2xPCI Computer

RM4ATX01

4U Skylake/ Kaby Lake rackmount system with a generous mix of PCIe and PCI expansion slots. Heavy duty steel electroplated chassis with a -20° – 60°C operating temperature insure harsh environment reliability.

  • LGA 1151 Intel® 6th/7th-Gen Core™ Skylake/Kaby Lake CPU
  • Long life cycle i7/ i5/ i3, Pentium®/ Celeron®
  • Dual-channel DDR4 2133 MHz
  • 2x PCIe x8, 3x PCIe x4, 2x PCI
  • Triple independent display: HDMI, DVI and VGA
  • 400W Power Supply, Standard
  • USB 3.0, 6 Gb/s SATA and full Mini PCIe slot
  • EIA RS-310 19″ Rackmount Standard
  • Washable air filter

Clear
Description
Specifications
Customize This Product
Downloads
Reviews (0)

Treasure Chest of Features

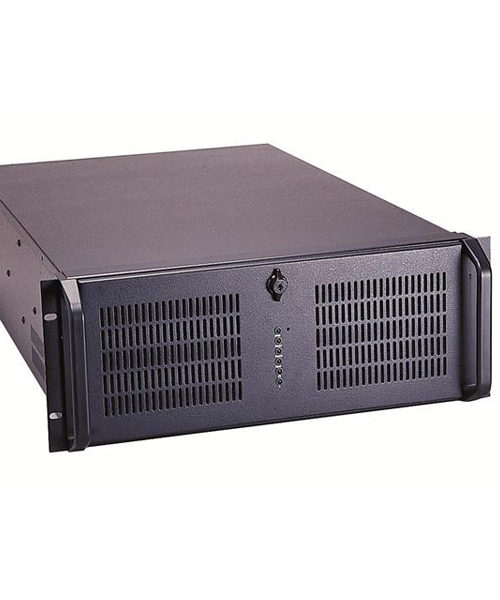

This heavy duty, cold rolled, electroplated steel chassis has two doors; one with a key lock and a filter door with a thumbscrew. Add-in card hold-down bar with individually adjustable fingers to keep cards solidly in place during movement or shipping. The full ATX motherboard offers high capacity expansion capability leaning toward PCIe.






 Born to Run

A long life cycle Intel® Skylake/ Kaby Lake processor combined with DDR4 2133 dual channel memory provides the needed computing power and model stability to make this system the backbone of your most demanding project. The DDR4 memory @1.2v, uses up to 40% less power than its DDR3 predecessor and has a 33% faster data transfer rate. Three different independent video display outputs ensure monitor compatibility.










I/O Plus

2x GbE, 6x RS232 and 12x USB ports.  LPT connector and VGA, HDMI, and iDP for HDMI, LVDS, VGA, or DP.  6x SATA 6Gb/s with RAID 0/1/5/10.

Column 1Column 2
ModelRM4ATX01
System
ProcessorIntel® 6th/7th-Gen Skylake/Kaby Lake CPU (LGA1151 socket, 65W TDP)
ChipsetIntel® Q170
GraphicsIntel® HD Graphics Gen 9 engine with 16 low-power execution units, supports DX11/12, OpenGL 4.3/4.4 and OpenCL2.x, ES 2.0
MemoryFour 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64 GB
Watchdog TimerWatchdog Timer: Software programmable supports 1~255 sec. system reset
I/O Internal
USB2 x USB 3.0 (2x10 pin, P=2.0) Chassis front
4 x USB 2.0 (2x4 pin, P=2.0)
Serial4 x RS-232 (2x5 pin, P=2.54)
2 x RS-232/422/485 (2x5 pin, P=2.54)
Audio1 x Front audio (2x5 pin)
Other1 x KB/MS (1x6 pin)
1 x LPT (2x13 pin, P=2.54)
I/O External
EthernetLAN1: Intel® I219LM with Intel® AMT 11.0 support
LAN2: Intel® I210AT PCIe controller with NCSI support
USB2 x USB 2.0
4 x USB 3.0
Video1 x VGA (up to [email protected] Hz)
1 x DVI-D (up to [email protected])
1 x HDMI 2.0 (up to [email protected])
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to [email protected])
Serial2x software-programmable RS-232/422/485 ports (COM1/ COM2)
2x RS-232 ports (COM3/ COM4)
AudioRealtek ALC662 HD codec supports 5.1-channel
3 x Audio jacks (line-out, line-in, mic-in) on rear IO
Expansion Internal
PCI/PCI Express2 x PCIe x 8 slot (Gen3)
3 x PCIe x 4 slot (Gen3)
2 x PCI slots
Mini PCIe1 x Full-size Mini PCIe card slot (supports mSATA)
DIgital I/ODigital I/O: 8-bit digital I/O (2x5 pin)
Storage
SATA HDD6 x SATA 6Gb/s (RAID 0/1/5/10 supported)
Power
Power SupplyInternal 400W ATX PS/2
SwitchesPower ON/OFF Momentary (Pushbutton),
IndicatorsLEDs for Power ON/OFF, HDD Activity
Mechanical
Dimensions19" (W) x 7.0" (D) x 20.1" (H)
Weight43.5 Lbs
Enclosure
MaterialHeavy duty, cold rolled, electroplated steel
Bays3x 5.25" & 1x 3.5"
Environmental
Operating Temperature-20°C ~ 60°C
Storage Temperature-30°C ~ 70°C
Humidity10%~90% , non-condensing
Air FilterWashable air filter behind door
Fans1x 120mm, 108CFM fan & opening for optional 120mm Fan

Motherboard Specifications

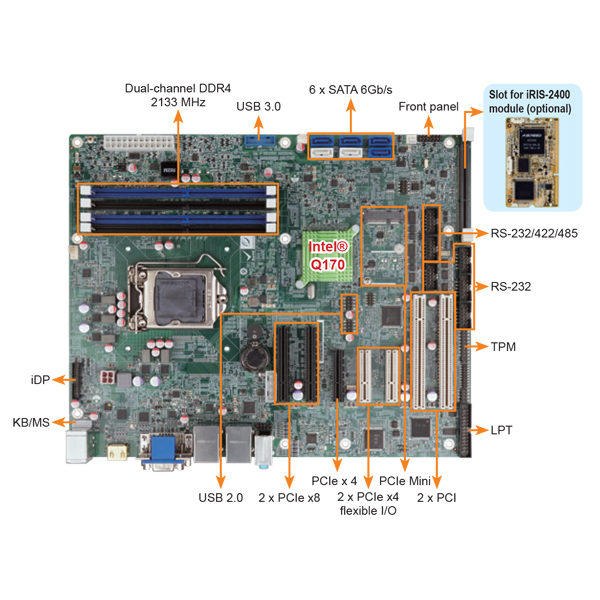

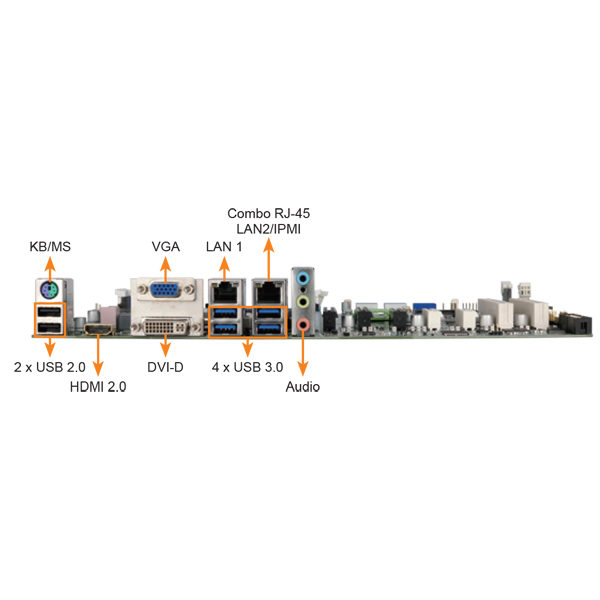

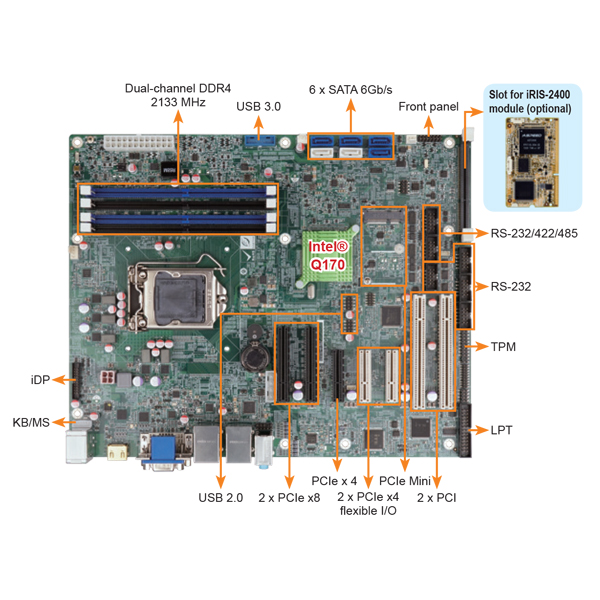

RM4ATX01 Motherboard Specifications

Chassis Drawing

RM4ATX01 Chassis Drawing
