Industrial Fanless Ultra-Compact Arm-based IoT Gateway Computer

IGT-20

The IGT-20 is an ARM-based fanless industrial IoT (Internet of Things) and automation gateway computer.  Based on the AM3352 from Texas Instrument’s Sitara AM335x family it is shipped as a development ready system pre-installed with Debian.

  • Industrial grade ARM-based system with pre-installed Debian
  • Compact size, designed for wireless gateway application
  • Wide temperature range operating from -25℃ to 70℃
  • 8 to 25V wide-range DC input
  • I/O including USIM Slot, USB, 10/100M LAN, and RS-232/422/485
  • Shock: 50G
  • Vibration: 5G
  • EMC: CE/FCC Class A
  • Microsoft Azure Certified for IoT

This product is currently out of stock and unavailable.

Description
Specifications
Customize This Product
Downloads
Reviews (0)

Unique Design

IGT-20 industrial grade ARM-based gateway is unlike common System on Module (SoM) based computers.  The IGT-20 is based on AM3352 from Texas Instrument’s Sitara AM335x family and is shipped as a ready system pre-installed with Debian.  The IGT-20 complies with common industrial CE/FCC, shock and vibration certifications.  Another advantage the ARM-based IGT-20 has over SoM is the wide 8 – 25 VDC input voltage range as compared to the typical SoM 5 VDC input voltage specification.


Impressive Performance

Intelligent agricultural, factory, or other challenging environment installations are no problem with the IGT-20’s extended -25°C ~ 70°C operating temperature.  In terms of storage, the IGT-20 has dual microSDHC slots, one internal and one lockable external. This design allows users to maintain separate system and user data locations and can expedite OS deployment for mass production.  For example, the internal microSDHC slot card could contain the OS and system files for easy deployment and the added security of a locked slot.  The external microSDHC slot card could contain user data and is easily accessible with push-push load/unloading and the added security of a locking mechanism.  8GB MLC microSD timing cached reads have been recorded at > 230 mb/s and timing buffered disk reads are > 20 mb/s .  Write speeds have been recorded at >11 mb/s.




Ample Connectivity

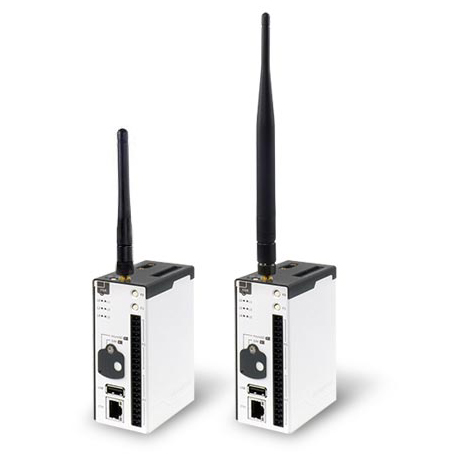

The IGT-20 I/O is compatible with a wide range of industrial grade sensors.  It features one USB2.0, one 10/100M LAN, two configurable COM ports (RS232/422/485) and an optional CAN bus port (IGT-21 only). In addition, there are 4 built-in isolated DIO channels that accept discrete signals from various sensors or buttons/ switches. There are also four built-in isolated digital output channels to control actuators and indicators.  The IGT-20 addresses communication with a mini PCIe slot and a USIM holder allowing it to transmit acquired data and system status via 3G, 4G or Wi-Fi (Mini PCIe Wi-Fi module).  The SMA connector of the wireless module can be mounted on the IGT-20’s top opening.  As a gateway, users can take advantage of six programmable status LED indicators and two control buttons to operate IGT-20 without a keyboard/ mouse.

Column 1Column 2
ModelIGT-20
System
ProcessorTI Sitara AM3352 1GHz Processor
Memory1GB DDR3L SDRAM
DC Input Range8~25V DC

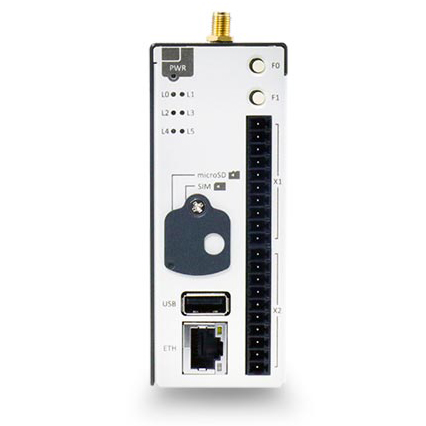

I/O Panel
Ethernet1x 10/100M Ethernet
SD Card1x external T-flash socket support SDHC
SIM Card1x external SIM socket
USB1x USB2.0
Isolated DIO4-CH isolated DI and 4-CH isolated DO
Console1x 3-wire RS-232
User LEDs6x user programmable LEDs
User Buttons2x user programmable buttons

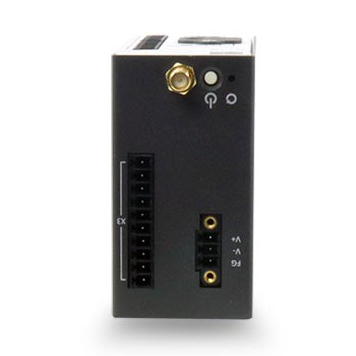

I/O Top
DC-in1x DC-input connector
Power Button1x power button
Reset Button1x reset button
Serial2x software configurable RS-232/422/485
Antenna Hole1x antenna hole for Wifi and 3G/LTE
I/O Internal
mPCIe1x full size mPCIe with SIM holder, USB 2.0 only
SD Card1x internal T-flash socket support SDHC
Software
Operating SystemDebian 8 pre-installed
Mechanical
Dimensions41mm(W) x 77mm(D) x 104mm(H)
Weight0.4 Kg
MountingDIN-Rail mounting
Environmental
Operating Temperature-25°C ~ 70°C *
Vibration5Grms
Shock50Grms
CertificationsCE/FCC Class A, according to EN 55032
* For sub-zero operating temperature, a wide temperature microSD module is required.
