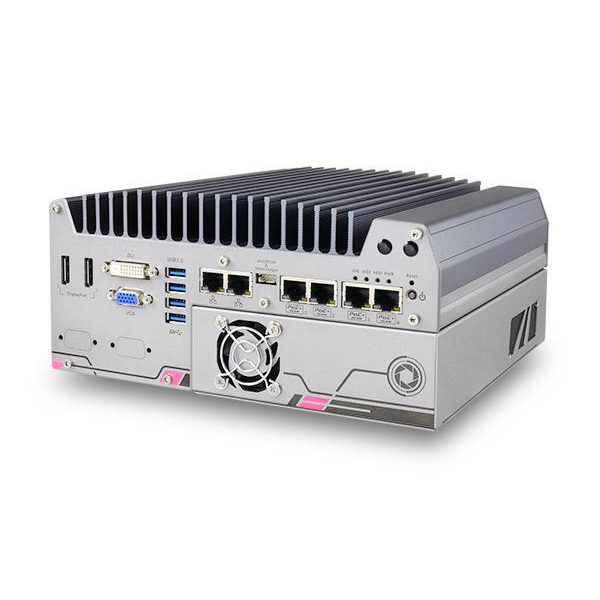

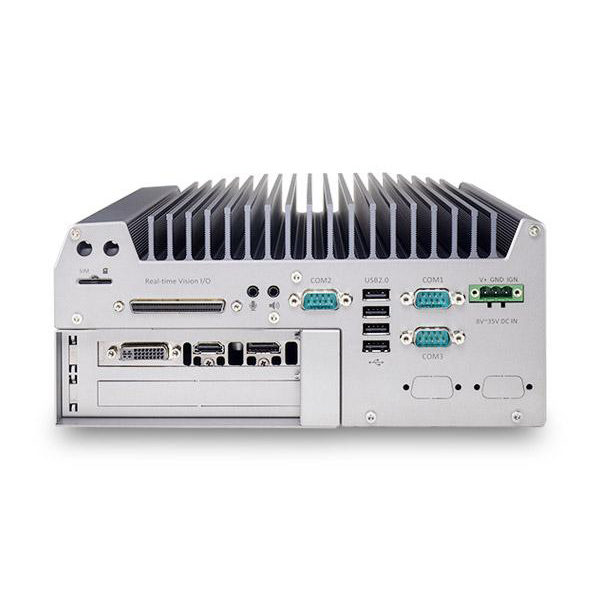

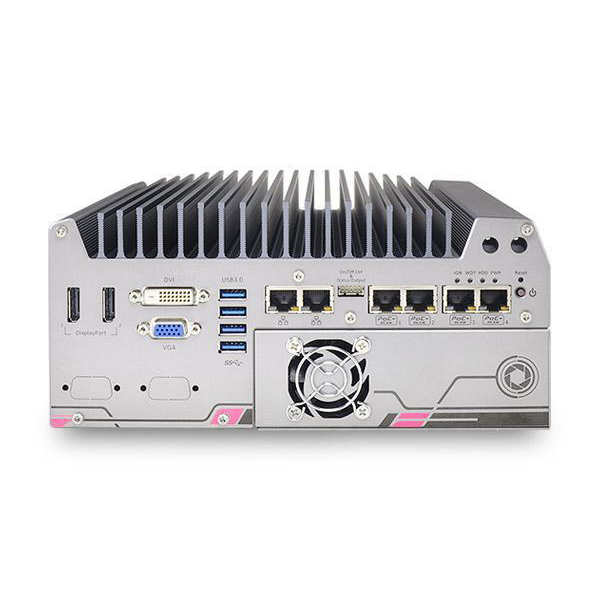

Rugged Fanless Machine Vision Computer

Nuvis-5306RT

Tired of cobbling together interfaces and one-off solutions to your machine vision projects? The Nuvis-5306RT has an endless bucket of functions to run your machine vision applications. Small, rugged, and powerful, it has built-in camera interfaces and real-time vision-specific I/O control for the most challenging applications.

• Long Life Cycle Intel® Skylake processor
• Rugged, -25°C to 70°C fanless (main computer) operation
• Supports Intel® 6th-Gen Core™ i7/ i5/ i3 LGA 1151 socket CPU
• 2x RS-232/ 422/ 485 ports and 2x RS-232 ports
• 3x GbE and 4x USB 3.0 ports
• VGA + DVI dual display outputs
• Accommodates one 3.5″ HDD or 2.5″ HDD/ SSD
• Optional 8-CH isolated DI and 8-CH isolated DO
• Compact 8.7 x 6.8 x 3.0 inch footprint

Clear
Description
Specifications
Customize This Product
Downloads
Reviews (0)

The Epitome of Machine Vision Control

Your MV system requires accurate interaction between lighting, camera, actuator and sensor devices to ensure high quality images.  The Nuvis-5306RT integrates an LED lighting controller, camera trigger, encoder input, PWM output and digital I/O to connect and control all the vision devices.  All vision-specific I/O is managed by Neousys’ patented MCU-based architecture and DTIO/NuMCU firmware to guarantee microsecond-scale real-time I/O control.

Vision systems also require exceptional computing power.  In addition to the remarkable performance of its Intel® 6th Gen Skylake Core™ i7/i5 CPU, the Nuvis-5306RT can further accommodate the NVIDIA® 75W TDP GPU to leverage GPU-accelerated vision libraries or deep-learning vision software.  Built-in PoE+ and USB 3.0 interfaces are combined and supplemented with CameraLink® and CoaXPress.  The Nuvis-5306RT is the ideal specialized platform for demanding MV applications.









Support all peripheral devices for machine vision applications     Specially designed for NVIDIA 75W GPU

  • CC/CV lighting controller (1A/24V)                                                                    20x FLOPS vs CPU
  • 12V camera trigger output                                                                             Reliable 7/24 operation with 100% GPU loading
  • Quadrature encoder input                                                                                     New era for machine vision
  • PWM output                                                                                                                       GPU-accelerated machine vision library
  • Isolated DI/DO                                                                                                                  Deep-learning machine vision software









DTIO V2                                                                                                                                    Integrated camera interface

  • Time/position-based trigger                                                                                     4x 802.3at PoE+ ports and 2x GigE ports
  • Deterministic 10 us response latency                                                                     4x UB3 ports with 1000 MB/s bandwidth

NuMCU                                                                                                                     Expandable interface by Cassette

  • For user-defined MCU F/W                                                                     CameraLink
  • Develop MCU code using TI CCS                                                           CoaXPress

10G Ethernet






High Performance and Versatility

Smaller than most vision controllers at 9.5 x 8.9 x 4.4 inches, the Nuvis-5306RT incorporates vision Specific I/O that supports all peripheral devices for machine vision applications through its CC/CV lighting controller (1A/24V), 12V camera trigger output, Quadrature encoder input, PWM output, and Isolated DI/DO.  The Nuvis-5306RT is specifically designed for an NVIDIA 75W GPU providing 20x the FLOPS of a typical CPU, offers reliable 7/24 operation at 100% GPU load and leverages GPU-accelerated vision libraries or deep-learning vision software.  The integrated camera interface includes 4x 802.3at PoE+ ports, 2x GbE ports and 4x USB 3.0 ports with 1000 MB/s bandwidth.  The 2-slot expandable PCIe cassette interface options include dual slot 75W GPU card, COTS CameraLink® and CoaXPress cards and 10G Ethernet.  DTIO V2 includes a Time/position-based trigger with deterministic 10 μs response latency.  The patented innovative thermal design can effectively dissipate heat generated by the GPU to ensure reliable real-world extended temperature operations from -25°C to 60°C under 100% GPU load.  This exceptional thermal performance is compounded by an innovative thermal transfer system that conducts heat 10x better than traditional fanless designs. The Neousys thermal pad liquefies when heated by the CPU while springs push the CPU closer to the chassis heatsink for optimal heat transfer.  Supports DDR4-2133 SDRAM memory, AMT 11.0 and TPM 1.2.

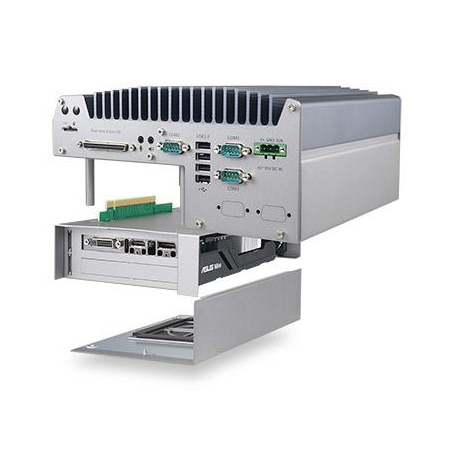

Neousys’ Patented expansion Cassette offers a reliable and flexible way to include fanless system PCI/PCIe bus expansion and minimize inter-card interference, increase expansion area cooling capacity, and ensure easy expansion card installation and replacement.

Individualized heat spreaders are installed in the cassette and conduct heat from the expansion card to the surface of the cassette to sustain a stable thermal environment within the cassette.  Inter-card interference is minimized since the cards are isolated in their own compartments.  Since the main computer compartment remains undisturbed during cassette installation and replacement, system reliability is maintained and assembly/service procedures are simplified due to the modular design.  The following pre-configured cassettes are available:

  • Intelligent ultracapacitor-based power backup module
  • PCIe-PoE354at with pre-installed passive heat-spreader
  • 75W graphics card with pre-installed heat-spreader and fan
  • Four 2.5″ HDD/ SSD, configured in RAID 0, 1 or 10

No Compromise Machine Vision I/O

Integrated vision-specific I/O includes a 4-CH CC/CV LED lighting controller with constant current and voltage modes.  Up to 2A per channel with 100kHz dimming control in constant current mode.  The constant voltage mode is 24 VDC with 100kHz dimming control.  4-CH camera trigger outputs are provided and have a 12 VDC level output.  The 1-CH quadrature encoder incorporates 3x input tracks, /A/B/Z.  The 8-CH isolated DO includes 4-CH isolated high-speed digital outputs @ <2µs transient time for strobe/PWM and 4-CH isolated high-current digital outputs with up to 500 mA of rated current.  The 8-CH isolated high-speed digital inputs have a <2µs transient time.  Patented MCU-based, real-time I/O control by DTIO V2 and NuMCU.  Built-in camera interfaces include 4-CH IEEE 802.3at GbE PoE+ PSE ports with an 80W power budget and 4-CH USB 3.0 ports @1000 Mb/s bandwidth.


Nuvis-5306RT Live Demo: Time Based Trigger and Position Based Trigger

Column 1Column 2
ModelNuvis-5306RT-DTIOi7QC
System
ProcessorSupports Intel® 6th-Gen Core™ LGA1151 CPU
Intel® Core™ i7-8700 (12M Cache, 3.2GHz up to 4.6GHz)
Intel® Core™ i5-8500 (8M Cache, 1.8GHz up to 4.0GHz)
ChipsetIntel® Q170 Platform Controller Hub
GraphicsGigabyte® GTX1050Ti-D5-4G (75W) GPU card
MemoryUp to 32 GB DDR4-2133 SDRAM by two SO-DIMM sockets
AMTSupports AMT 11.0
TPMSupports TPM 2.0
Vision Specific I/O Interface
LED Lighting Controller4-CH LED lighting controller output supports constant current mode (up to 2A per channel, 100 kHz dimming control) and constant voltage mode (24V DC, 100 kHz dimming control)
Camera Trigger4-CH camera trigger output (12V DC output)
Encoder Input1-CH quadrature encoder input (A/ B/ Z)
Isolated Digital Output4-CH isolated high-speed DO (<2 us transient time, for strobe/PWM) and 4-CH isolated high-current DO (up to 500 mA rated current)
Isolated Digital Input8-CH isolated high-speed digital input (<2 us transient time)
Real-time I/O ControlPatented MCU-based real-time I/O control with DTIO V2 or NuMCU firmware
General I/O Interface
Ethernet Port6x Gigabit Ethernet ports by Intel® (1x I219 and 5x I210)
PoE+IEEE 802.3at PoE+ PSE on GigE Port 3 ~ Port 6, 80 W total power budget
USB 3.04x USB3.0 ports via native xHCI controller, 1000 MB/s total bandwidth
USB 2.04x USB2.0 ports
Video1x stacked VGA + DVI-D connector
2x DisplayPort connectors, supporting 4K2K resolution
Serial2x software-programmable RS-232/422/485 port (COM1 & COM3)
1x RS-232 port (COM2)
Audio1x Mic-in and 1x Speaker-out
Expansion Internal
PCI/PCI Express1x PCIe x16 slot @ Gen3, 8-lanes PCIe signals in Cassette, supporting  75W NVIDIA® GPU cardand COTS CameraLink and CoaXPress camera interface card
Mini PCI-E1x internal mini PCI Express socket with front-accessible SIM socket
1x internal mini PCI Express socket with internal SIM socket (muxed with mSATA)
Storage
SATA HDD2x internal SATA port for 2.5” HDD/SSD installation. Supports RAID 0/1
mSATA1x full-size mSATA port (mux with mini-PCIe)
Power
DC Input1x 3-pin pluggable terminal block for 8~35V DC input
Remote Ctrl. & Status Output1x 10-pin (2 x 5) wafer connector for remote on/off control and status LED output
Mechanical
Dimensions240 mm (W) x 225 mm (D) x 111 mm (H)
Weight4.5 kg (incl. CPU, memory and HDD)
MountingWall-mount by mounting bracket
Environmental
Operating Temperaturewith i7-6700, i5-6500 (65W TDP) -25°C ~ 60°C **/*** (configured as 35W CPU mode) -25°C ~ 50°C **/*** (configured as 65W CPU mode)
Storage Temperature-40°C ~85°C**
Humidity10%~90% , non-condensing
VibrationOperating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
ShockOperating, 50 Grms, Half-sine 11 ms duration (w/ SSD, according to IEC60068-2-27)
CertificationsCE/ FCC Class A, according to EN 55022, EN55032 & EN 55024
* For i7-6700 running at 65W mode, the high operating temperature shall be limited to
50°C and thermal throttling may occur when sustained full-loading applied. Users can
configure CPU power in BIOS to obtain higher operating temperature.
** For sub-zero operating temperature, a wide temperature HDD drive or Solid State
Disk (SSD) is required.
