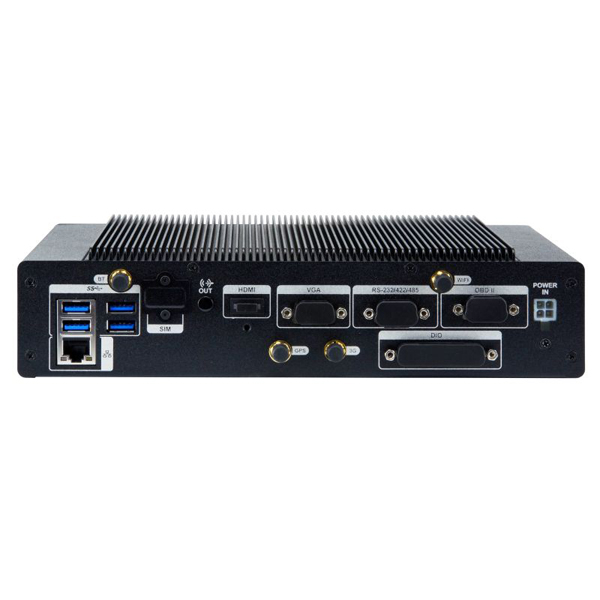

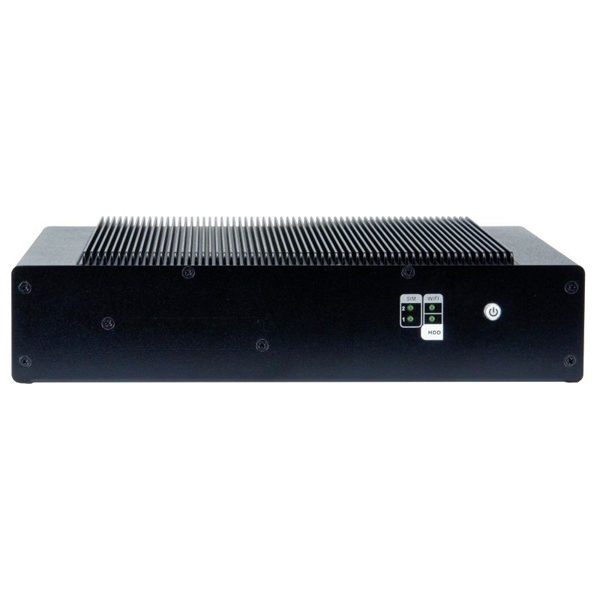

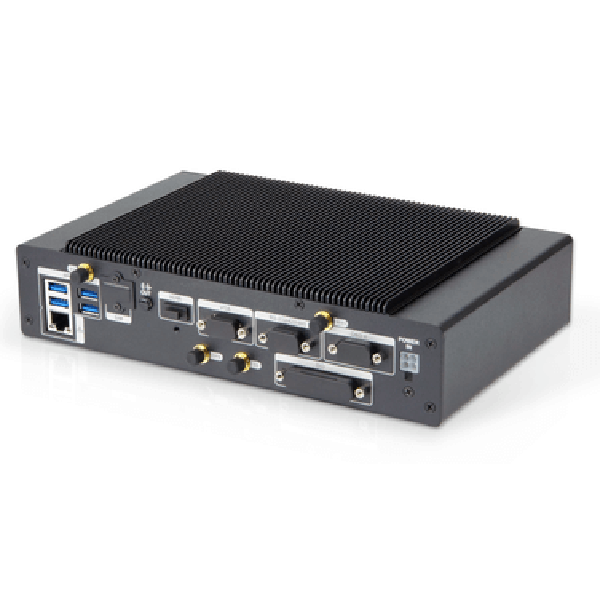

Rugged Fanless In-Vehicle Computer

IVS-110-AL

Bred for public transportation and fleet management tracking systems, the fanless IVS-110 is designed for harsh environments and incorporates specialized I/O ports to connect with multiple in-vehicle peripheral devices for a myriad of applications. The wide range VDC input helps prevent electrical surges on start-up.

  • Long life cycle Intel® Apollo Lake  Atom™ x7-E3950 CPU
  • Dual SIM slot
  • Optional 3G/Wi-Fi
  • 16 x DI/DO
  • 1 x HDMI (lockable), 1 x VGA
  • Built-in GPS function
  • E-Mark certification
  • Built-in OBD-II/J1939
  • IP4X protection

Description
Additional information
Specifications
Customize This Product
Reviews (0)

Mighty & Mobile

At a mere 2.4 inches in height and equipped with robust shock/vibration/IP4X qualifications, the IVS-110 can be mounted in a variety of confined spaces in harsh environments. Small, quiet and versatile, with rich communication oriented I/O, the IVS-110 is an ideal choice for vehicle fleet management and public transportation including video surveillance and on-board payment. The IVS-110 is equipped with dual SIM slots, useful when transmitting data. Vehicle position can be monitored via the GPS interface. The OBD-II/J1939 interface streamlines vehicle data and diagnostic collection. Mini PCIe GbE expansion cards can also be added through the E-Window interface.


Speed & Agility

Powered by a long life cycle quad core Intel® Atom™ Apollo Lake x7-E3950 industrial Processor, the low 12W TDP and fanless thermal design contribute to the rigorous -30°C – 70°C operating temperature range of the IVS-110. This temperature response coupled with conformance to IEC60068-2-27 shock, MILSTD-810G 514.5 vibration and IP4X standards ensure that the IVS-110 can handle a harsh in-vehicle environment. The wide 9 – 36 VDC input voltage range helps prevent electrical surges on start-up and accommodates a multitude of vehicle voltage-bus designs, eliminating the need for a separate power adapter in many applications.  Data storage is addressed through a 1x 2.5 inch SATA 6Gb/s HDD/SSD drive bay, 1x mSATA (Mini PCIe Slot), and a 1x eMMC 5.0.  The ample supply of communication technologies include GPS and optional WLAN, Bluetooth and WWAN.


Ideal I/O For Your Vehicle Project

Perfectly positioned & flawlessly executed, the IVS-110 I/O even addresses some of the more subtle requirements for in-vehicle computers with interfaces such as OBD-II/J1939 and on-board GPS. 1x 16-bit digital I/O (8-bit input / 8-bit output) DIO complements the expandable 1x PCIe GbE Intel® I211. 1x RS232/422/485 COM port and optional WLAN by Mini PCIe Wi-Fi 802.11 a/b/g/n/ac, WWAN by PCIe Mini WCDMA/HSDPA/HSUPA and Bluetooth by BT 4.0/3.0+HS (combo with WLAN). 4x USB 3.0 ports and VGA @Up to 1920 x 1200, 60 Hz and HDMI @Up to 3840 x 2160, 30 Hz.

HDD/SSD Data Storage

None, 2.5" SATA SSD 256GB, 2.5" SATA SSD 512GB, 2.5" SATA SSD 1TB, 2.5" SATA Hard Disk, 500GB, 7200RPM, 2.5" SATA Hard Disk, 1TB, 7200RPM

mSATA Data Storage

None, mSATA 250GB SSD, mSATA 500GB SSD, mSATA 1TB MLC SSD

Expansion Options

None, PCIe Mini card supports 1-port GbE with Realtek RTL8111E controller, with PMS 194C I/O bracket and 250mm cable, R10, PCIe Mini card supports 2-port GbE with Intel I211 controller, with PMS 194C I/O bracket and 250mm cable, R10

Specifications

SystemColumn 2
ModelIVS-110-AL-E3/4G-R10
System
ProcessorIntel® Atom™ x7-E3950 Apollo Lake Processor (quad-core 2.0GHz, 12W TDP)
ChipsetSoC
Memory1 x 204-pin DDR3L SO-DIMM. 4GB pre-installed
Supported OSMicrosoft® Windows 10 IoT Enterprise
Communication
WLANPCIe Mini Wi-Fi 802.11 a/b/g/n/ac (optional)
BluetoothBT 4.0/3.0+HS (combo with WLAN optional module)
WWANPCIe Mini WCDMA/HSDPA/HSUPA (optional)
GPSOn board GPS
I/O External
Ethernet1x RJ-45 PCIe GbE by Intel® I211
USB4x USB3.0
Video2 x Display:
1 x VGA (Up to 1920 x 1200 @ 60 Hz)
1 x HDMI (Up to 3840 x 2160 @ 30 Hz)
Serial1 x RS-232/422/485 (BIOS configuration)
Isolated DIO1 x 16-bit digital I/O (8-bit input / 8-bit output)
CAN-Bus/OBD-II1 x DB9 OBD-II/J1939
Audio1 x Audio line out
Expansion Internal
Mini-PCIe1 x Full/Half-size PCIe Mini slot (reserved for WWAN)
1 x Full/Half-size PCIe Mini slot (reserved for mSATA or E-window)
1 x Half-size PCIe Mini slot (reserved for WLAN)
Storage
SATA HDD1 x 2.5" SATA 6Gb/s HDD/SSD drive bay
mSATA /eMMC1 x mSATA (PCIe Mini Slot)
1 x eMMC 5.0 (reserved)
SIM2 x on board SIM card slot
Power
DC InputCigarette lighter power cable: 9 V~ 36 V DC
Consumption12V @ 5A (Intel® Atom™ x7-E3950 with 8GB DDR3 memory)
Mechanical
Dimensions261 x 170 x 60 (WxHxD) (mm)
Weight2.4 kg / 3.8 kg (Net/Gross)
MountingWall-mount, VESA 100 (standard)
Enclosure
MaterialExtruded aluminum alloy
Environmental
Operating Temperature-30°C ~ +70°C with air flow
Storage Temperature-40°C ~ 80°C
Humidity10% ~ 95%, non-condensing
Vibration5 Grms, 5-500 Hz, 3 Axes(with SSD, according to IEC60068-2-64) MIL-STD-810F 514.5C-2 (SSD)
Shock50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
CertificationsCE/FCC/E-Mark/IP rating : IP 4X compliant
