Rugged Compact GPU-Accelerated 1280 CORE Computer

Nuvo-7160GC

Rugged GPU-accelerated computer designed specifically for machine learning applications including machine vision, facial recognition, and autonomous driving. Pre-loaded GPU with 1280 CUDA core and 4-6 TFLOP capability for AI inference tasks. -25°C to 60°C extended operating temperature. Powerful hexa-core long life cycle Coffee Lake CPU makes this a fast task intensive GPU computer with enhanced model configuration stability over time.

  • Pre-installed GeForce GTX 1060 SC Gaming, EVGA 06G-P46163-KR, 6GB GDDR5 Graphics Card
  • Intel® 8th-Gen Core™ hexa-core 35W/ 65W LGA1151 CPU
  • Patented rugged thermal design
  • Cold boot -25°C to 60°C extended operating temperature @100% load
  • 6x GigE ports for 9.5KB super jumbo frame
  • M.2 2280 M key socket (Gen3 x4) supporting NVMe SSD or Intel® Optane™ memory
  • 4x USB 3.1 Gen2 ports and 4x USB 3.1 Gen1 ports
  • Accommodates 2x 2.5″ SATA HDD/ SSD with RAID 0/ 1 support
  • MezIO™ compatible interface for function expansion
  • Patented ventilation design for graphics card
  • Extended power input range from 8 to 35 VDC
Clear
Description
Specifications
Customize This Product
Downloads
Reviews (0)

Compact GPU Computing Done Right

Small, rugged, and task specific; the most demanding placement criteria is possible with a 9.5 x 8.9 x 4.4 inch footprint while conforming to military transport vibration and functional shock (50g) crash simulation standards. The pre-loaded GPU card has its own patented thermal ventilation system and the main computer’s quiet fanless design guards against intrusion of airborne contaminants.  Exceptional thermal performance is achieved through an innovative thermal transfer system that conducts heat 10x better than traditional fanless designs. The Neousys thermal pad liquefies when heated by the CPU while springs push the CPU closer to the chassis heatsink for optimal heat transfer.


A Workhorse for the Long Haul

Intel’s® Long Life Cycle 8th-Gen hexa-core i7/i5 CPU increases the NUVO-7160GC’s computational performance by 50% over the previous generation and is designed for long term availability. Dual channel DDR4 2666Mhz memory. Choose an M.2 NVMe SSD or Intel® Optane™ memory for traditional HDD acceleration. The extended operating temperature range of -25°C (cold boot) to 60°C applies @100% load. The extended power input range of 8 to 35 VDC eliminates the need for a separate power adapter in many applications.


Connectivity on Tap

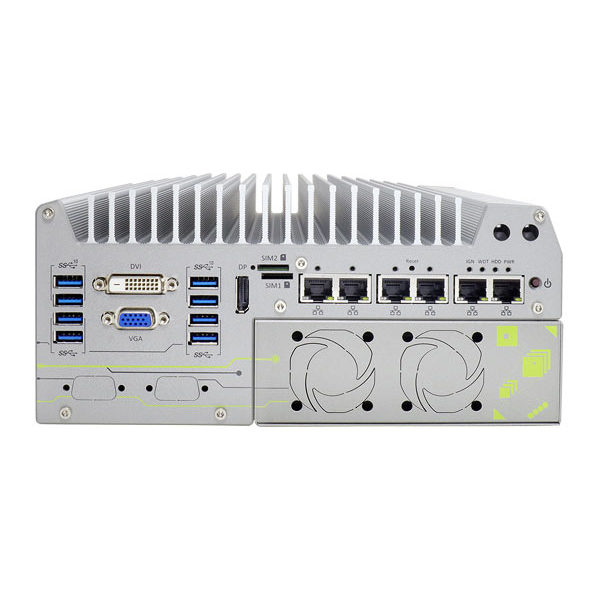

The array of Nuvo-7160GC on-board I/O ports are shielded from power surges and ESD through specially designed protection circuits. The fast 4x USB 3.1 Gen2 (10 Gbps) ports are in addition to the 4x USB 3.1 Gen1 and offer the added advantage of 900mA of current handling capacity; nearly double that of previous versions. The M.2 2280 M key socket (Gen3 x4) supports a conventional SSD, NVMe SSD or Intel® Optane™ memory. 6x GbE ports @9.5KB super jumbo frame for CPU cycle reduction and increased TCP performance. Optional 802.3at PoE+ PSE for Ports 3 – 6 with a 100 W total power budget.  4x COM ports, VGA, DVI-D, and DisplayPort. Rich optional I/O including DIO, COM, PoE+, ignition power, and USB with MezIO™ expansion cards.

Column 1Column 2
ModelNuvo-7160GC-GTX1060-ixQC-65W
System
ProcessorSupporting Intel® 8th-Gen 6-core Coffee Lake CPU (LGA1151 socket, 65W TDP)
ChipsetIntel® Q370 Platform Controller Hub
GraphicsGeForce GTX 1060 SC GAMING 06G-P4-6163-KR
MemoryUp to 32 GB DDR4 2666/ 2400 SDRAM (two SODIMM slots)
AMTSupports AMT 12.0
TPMSupports TPM 2.0
I/O External
Ethernet6x Gigabit Ethernet ports by I219 and 5x I210
PoE+Optional IEEE 802.3at PoE+ PSE for Port 3 ~ Port 6 100 W total power budget
USB4x USB 3.1 Gen2 (10 Gbps) ports
4x USB 3.1 Gen1 (5 Gbps) ports
Video1x VGA connector, supporting 1920 x 1200 resolution
1x DVI-D connector, supporting 1920 x 1200 resolution
1x DisplayPort connector, supporting 4096 x 2304 resolution

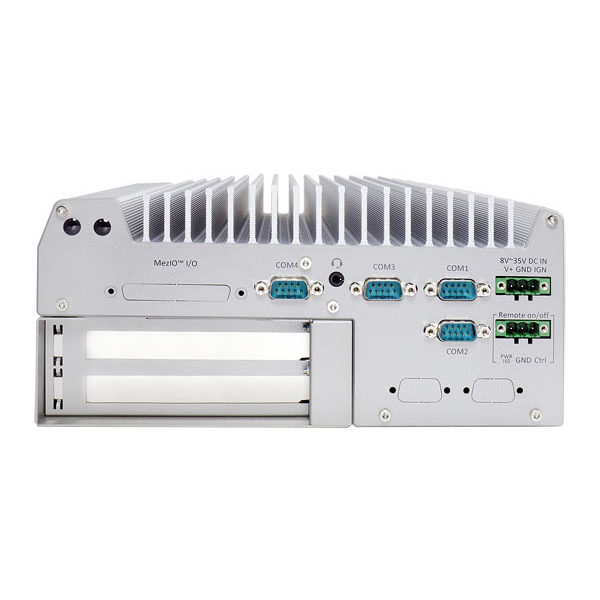

Serial2x software-programmable RS-232/422/485 ports (COM1/ COM2)
2x RS-232 ports (COM3/ COM4)
Audio1x 3.5 mm jack for mic-in and speaker-out
Expansion Internal
PCI/PCI Express1x PCIe x16 [email protected], 16-lane PCIe signals in Cassette for installing an NVIDIA® graphics card up to 120W TDP (Max. graphics card dimension is 188 mm(L) x 121 mm(W), dual slot allocation)
Mini PCI-E1x full-size mini PCI Express socket with internal SIM socket (mux with mSATA)
M.21x M.2 2242 B key socket with dual front-accessible SIM sockets, supporting dual SIM mode with selected M.2 LTE module
Expandable I/O1x MezIO™ expansion port for Neousys MezIO™ modules
Storage
SATA HDD2x internal SATA port for 2.5" HDD/SSD installation, supporting RAID 0/1
MSATA1x full-size mSATA port (mux with mini-PCIe)
M.21x M.2 2280 M key socket (PCIe Gen3/ x4) for NVMe SSD or Intel® Optane™ memory installation
mSATA1x full-size mSATA port (mux with mini-PCIe)
Power
DC Input1x 3-pin pluggable terminal block for 8~35 VDC power input
Remote Ctrl. & Status Output1x 3-pin pluggable terminal block for remote control and PWR LED output
Mechanical
Dimensions240 mm (W) x 225 mm (D) x 111 mm (H)
Weight4.5 Kg (including CPU, GPU, memory and HDD)
MountingWall-mount (standard) or DIN-rail mounting (optional)
Environmental
Operating Temperature-25°C ~ 50°C */** (configured as 65W TDP with 120W GPU)
Storage Temperature-40°C ~ 85°C
Humidity10%~90% , non-condensing
VibrationOperating, MIL-STD-810G, Method 514.6, Category 4
ShockOperating, MIL-STD-810G, Method 516.6, Procedure I, functional shock=50g
CertificationsCE/FCC Class A, according to EN 55032 & EN 55024
*For i7-8700 running at 65W mode, the highest operating temperature shall be limited to 50°C and thermal throttling may occur when sustained full-loading applied. Users can configure CPU power in BIOS to obtain higher operating temperature.
**For sub-zero operating temperature, a wide temperature HDD drive or Solid State Disk (SSD) is required.
