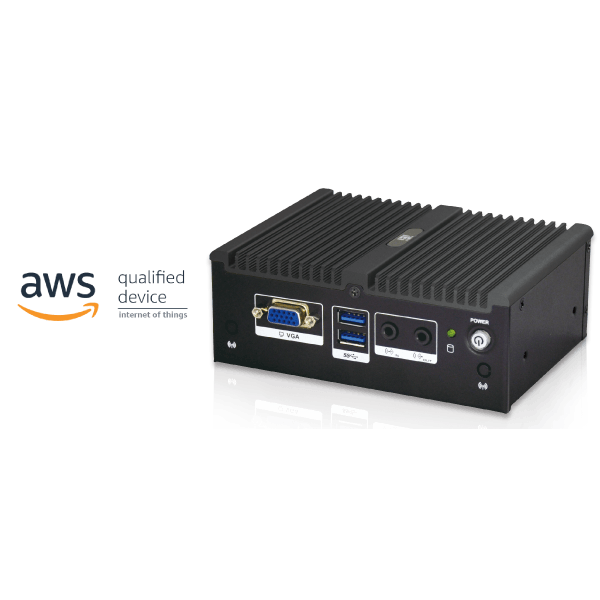

Industrial Fanless Ultra-Compact Computer

uIBX-250-BW

An ultra-compact palm-sized fanless computer with all the essential functions to work as a production line thin client or factory gateway. Add in the uIBX-250 extended operating temperature range and shock / vibration qualifications and you have a computer well-suited for a factory, warehouse, or transportation rugged confined environment.

  • Fanless system with Intel® Celeron® N3160 processor
  • Pre-installed 2GB DDRL memory
  • Dual display
  • Two RS-232/422/485
  • Full-size PCIe Mini slot for expansion
  • Four USB 3.0 ports
  • Two GbE LAN ports

Description
Additional information
Specifications
Customize This Product
Reviews (0)

Min Size – Max Features

Palm-sized at 5.4 x 4 x 2.1 inches, this ultra-compact fanless computer can be mounted just about anywhere.  As a production line thin client, users can read SOPs, search for part numbers, and get schedule updates.  As a gateway, the uIBX-250 could collect, store, and retrieve data from multiple locations and factory subsystems and make it available for decision makers.  Versatile mounting options include wall mounting and monitor mounting.  The low 6W TDP of the Intel® Celeron® Braswell N3160 CPU along with the all-aluminum fanless construction of the chassis and heatsink contribute to the extended -20° – 60°C operating temperature.  The uIBX-250 is compliant with shock and MIL-STD-810F 514.SC-2 vibration standards so it can withstand a harsh operating environment.


Multitasker with Longevity

As a production line thin client, users can read SOPs, search for part numbers, and get schedule updates. As a gateway, the uIBX-250 could collect, store, and retrieve data from multiple locations and factory subsystems and make it available for decision makers. The long life cycle 5th-Gen Intel® Braswell N3160 Celeron® CPU is scheduled for a 15 year model life.






I/O That Fits Your Project

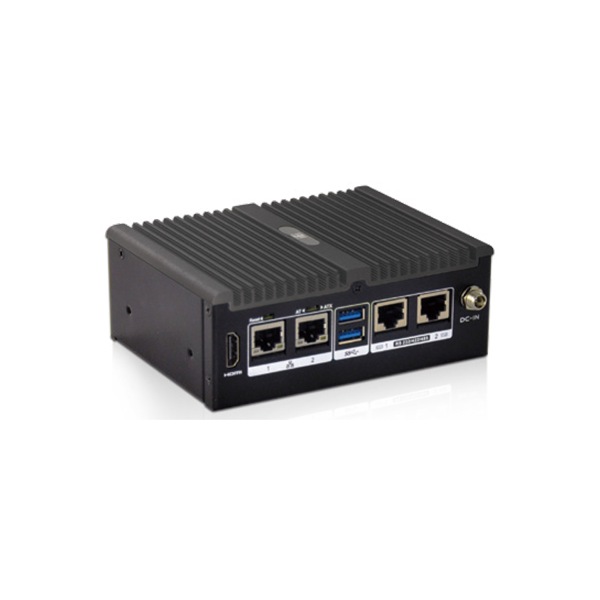

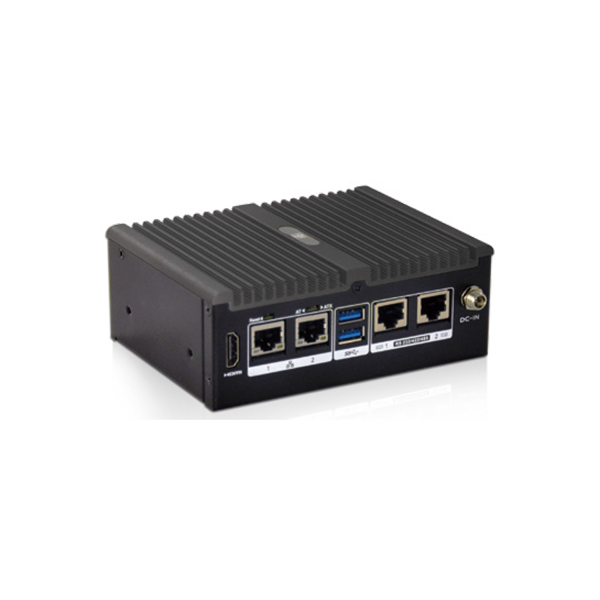

2x RJ-45 PCIe GbE are fed by an Intel® I211 controller and located next to 2x RS-232/422/485 (RJ-45) COM ports. The HDMI and VGA video ports (dual display) are located on opposing sides of the computer. HDMI: 3840 x [email protected], VGA: 1920 [email protected] An optional wireless 1x 802.11a/b/g/n/ac kit with Bluetooth is available and expansion includes 1 x Full-size PCIe Mini (supports mSATA, muxed with SATA). Data storage capability is provided with a 1 x 2.5” SATA 6Gb/s HDD/SSD bay.

Memory

4GB DDR3L SO-DIMM, 8GB DDR3L SO-DIMM

Internal HDD/SSD Data Storage

None, 2.5" SATA SSD 256GB, 2.5" SATA SSD 512GB, 2.5" SATA SSD 1TB, 2.5" SATA Hard Disk, 500GB, 7200RPM, 2.5" SATA Hard Disk, 1TB, 7200RPM

mSATA Data Storage

mSATA 250GB SSD, mSATA 500GB SSD, mSATA 1TB MLC SSD

Wireless

None, 1T1R wifi module kit

Specifications

Column 1Column 2
ModeluIBX-250-BW-N3/2G-R10
System
ProcessorIntel® Celeron® Braswell N3160 (up to 2.24 GHz, quad-core, 2 MB cache, TDP=6W)
ChipsetSoC
Memory1 x 204-pin DDR3L SO-DIMM slot (2 GB pre-installed, system max: 8GB)
Communication
Wireless1 x 802.11a/b/g/n/ac (optional)
I/O External
Ethernet2 x RJ-45 PCIe GbE by Intel® I211 controller
USB 3.04
Video1x HDMI 3840 x 2160 @30Hz
1 x VGA 1920 [email protected]
Serial2 x RS-232/422/485 (RJ-45)
Audio1 x Line-out, 1 x Line-in
Buttons & Switches1 x Power Button, 1 x Reset Button, 1 x AT/ATX Switch
Expansion Internal
Mini-PCIe1 x Full-size Mini PCIe slot (supports mSATA, colay with SATA)*
Storage
SATA HDD1 x 2.5'' SATA 6Gb/s HDD/SSD bay
Power
DC InputDC Jack: 12 V DC
Consumption12V @ 2A (Intel® Celeron® N3160 with 2 GB memory)
Mechanical
Dimensions136.6 x 102.4 x 52 (WxHxD) (mm)
Weight470 g/1.4 kg
MountingWall mount, VESA 75
Enclosure
MaterialExtruded aluminum alloy
Environmental
Operating Temperature-20°C ~ 60°C with air flow (SSD), @10% ~ 95%, non-condensing humidity
Operating ShockHalf-sine wave shock 5G, 11ms, 3 shocks per axis
Operating VibrationMIL-STD-810F 514.5 C-1 (HDD), MIL-STD-810F 514.5 C-2 (SSD)
CertificationsCE/FCC
Supported OSMicrosoft® Windows 8, Microsoft® Embedded Standard 7 E
