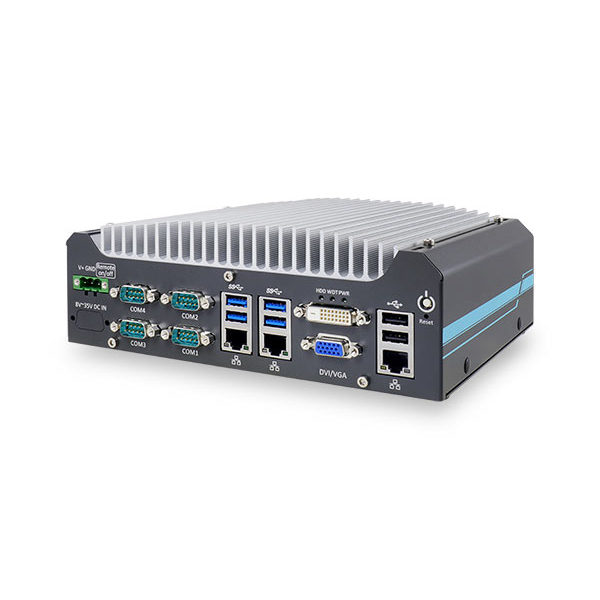

Rugged embedded controller with operating temperature delta of 95 degree C
Perfect for plant floor and extreme automation project environments.
• Long Life Cycle Intel Skylake processor
• Rugged, -25°C to 70°C fanless operation
• Supports Intel® 6th-Gen Core™ i7/ i5/ i3 LGA 1151 socket CPU
• 2x RS-232/ 422/ 485 ports and 2x RS-232 ports
• 3x GbE & 4x USB 3.0 ports
• VGA + DVI dual display outputs
• Accommodates one 3.5″ HDD or 2.5″ HDD/ SSD
• Optional 8-CH isolated DI and 8-CH isolated DO
• Compact 8.7 x 6.8 x 3.0 inch footprint

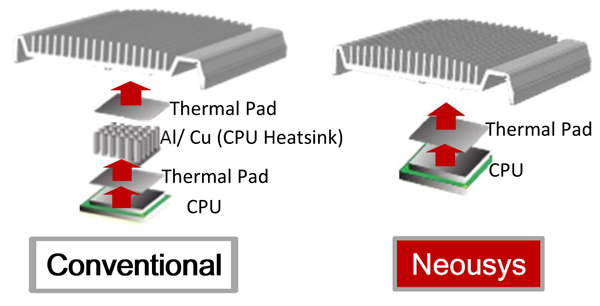

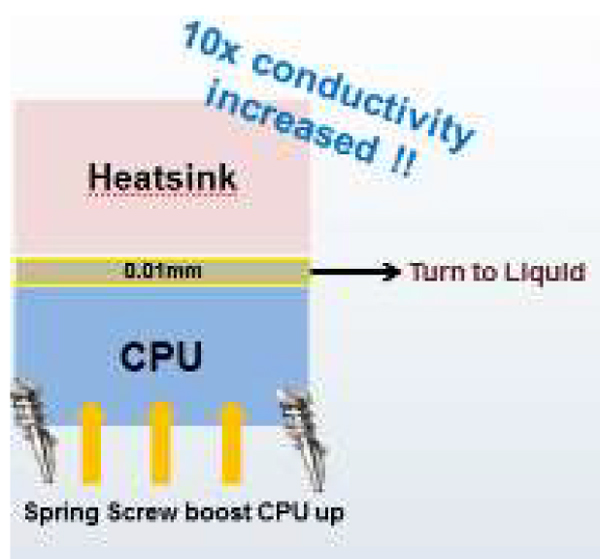

At just 8.7 x 6.8 x 3.0 inches, this rugged embedded controller can be deployed in the most restrictive spaces and the quiet fanless design guards against intrusion of airborne contaminants. Built to withstand Shock and Stochastic vibration per IEC standards. A wide -25 – 70°C operating temperature, at 100% load, provides flexibility when considering placement in extreme environments. This exceptional thermal performance is achieved through an innovative thermal transfer system that conducts heat 10x better than traditional fanless designs. The Neousys thermal pad liquefies when heated by the CPU while springs push the CPU closer to the chassis heatsink for optimal heat transfer.
Besides being the most compact controller supporting Skylake LGA1151 socket CPUs (i5/i7), the Nuvo-5501 enjoys, @35W, a 46% reduction in CPU generated heat over the previous Broadwell platform. The DDR4-2133 memory, @1.2v, uses up to 40% less power than its DDR3 predecessor and has a 33% faster data transfer rate. By eliminating the fan, longevity is increased; one less moving part to fail. Product model Life Cycle is extended through use of an embedded CPU and chipset ensuring long term model availability for your project. Product model changes are curbed or eliminated over time to keep recurring project costs to a minimum.

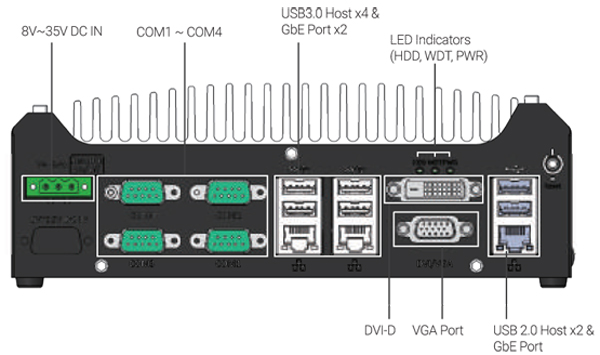

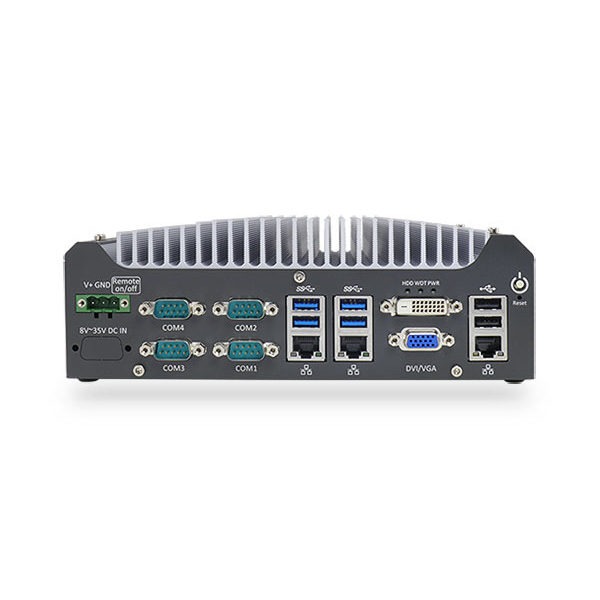

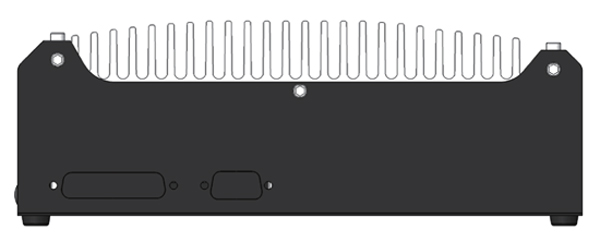

In its compact enclosure, Nuvo-5501 features rich, front-accessible I/O including 3x GbE, 4x USB 3.0, 2x USB 2.0, and 4x COM ports. There is even enough room for a 3.5” or 2.5” HDD and a full-size mSATA socket. Optional 8-CH isolated DI and 8-CH isolated DO provides a versatile interface for automation tasks. On/Off remote control. VGA and DVI-D. The compact Nuvo-5501 is a rugged, long life cycle, cost-effective solution that does not compromise on performance and reliability, making it the ideal value based embedded controller for various industrial applications.
System Model Nuvo-5501 Processor Supports Intel® 6th-Gen Core™ Skylake LGA 1151 CPU Intel® Core™ i7-6700TE (8M Cache, 2.4/ 3.4 GHz, 35W TDP) Intel® Core™ i5-6500TE (6M Cache, 2.3/ 3.3 GHz, 35W TDP) Intel® Core™ i3-6100TE (4M Cache, 2.7 GHz, 35W TDP) Chipset Intel® H110 platform controller hub Graphics Integrated Intel® HD 530/510 controller Memory Up to 16GB DDR4-2133 (single SO-DIMM) I/O External Ethernet 1x Gigabit Ethernet port (via Intel I219-LM) 2x Gigabit Ethernet port (via Intel I210-IT) USB 4x USB3.0 ports 2x USB2.0 ports Video 1x VGA connector 1x DVI-D connector Serial 2x software-programmable RS-232/ 422/ 485 ports 2x RS-232 ports Isolated DIO 8-CH isolated DI and 8-CH isolated DO (optional) I/O Internal USB 1x internal USB2.0 port Expansion Mini-PCIe 1x full-size mini PCI Express socket M.2 1x M.2 B keyed socket for 3G/4G SIM socket options USB 1x internal USB2.0 port Remote Ctrl. & Status Output 1x 2x6-pin 2.0mm pin-header connector for remote on/off control and status LED output Storage SATA HDD 1x internal SATA port for 3.5” HDD or 2.5” HDD/ SSD MSATA 1x full-size mSATA socket Power DC Input 1x 3-pin pluggable terminal block for 8~35 VDC power input Mechanical Dimensions 221 mm (W) x 173 mm (D) x 76.2 mm (H) Weight 2.8 kg (incl. CPU, GPU, memory and HDD) Mounting Wall-mount (standard) or DIN-rail mount (optional) Environmental Operating Temperature -25°C ~ 70°C */** Storage Temperature -40°C ~ 85°C Humidity 10%~90% , non-condensing Vibration Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) Shock Operating, 50 Grms, half-sine 11 ms duration (w/ SSD, according to IEC60068-2-27) Certifications CE/FCC Class A, according to EN55022, EN55024 & EN55032 *The 100% CPU loading is applied using Passmark® BurnInTest 8.1. **For sub-zero operating temperature, a wide temperature HDD drive or Solid State Disk (SSD) is required
