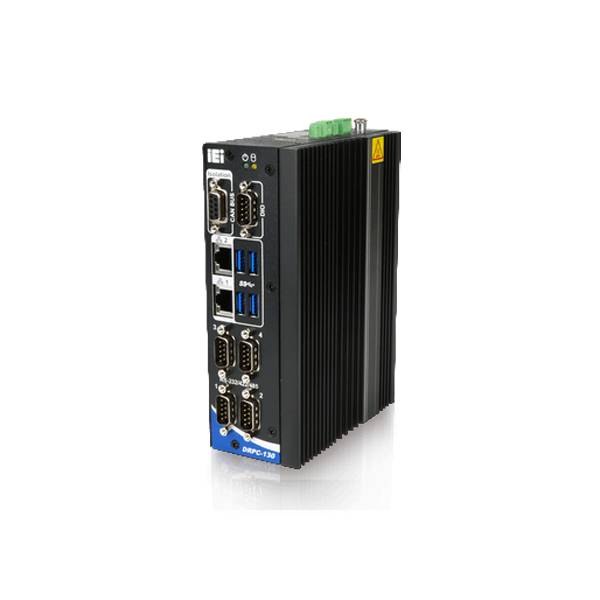

Industrial Fanless Compact CAN Bus Computer

DRPC-130-AL

CAN Bus enabled with duel isolated CAN bus ports, 4 x serial ports, DIO, remote power, and extended range input, the DRPC-130 is ready for vehicle or factory installation.  The Intel® Apollo Lake x5-E3930 Atom™ CPU runs cool under load adding to the DRP-130’s versatility.  Durability is further enhanced through shock and vibration qualification.

  • Intel® Atom™ x5-E3930 1.3GHz (up to 1.8 GHz)
  • DDR3L 1.35V SO-DIMM
  • Serial, CAN bus & digital I/O interface
  • 4x RS-232/422/485 COM ports
  • 12 – 24 VDC input voltage range
  • 1 x 2.5′ SATA 6Gb/s HDD/SSD drive bay

Description
Additional information
Specifications
Customize This Product
Reviews (0)

Practical Design

At 2.3 x 5.1 x 6.9 inches and equipped with a 2-port isolated CAN Bus and remote power capability, this industrial DIN-rail embedded controller can be safely deployed in a vehicle or factory.  The quiet fanless design guards against intrusion of airborne contaminants.  The DRPC-130 is shock qualified and built to withstand vibration per MIL-STD-810G standards.  The extended -20 – 60°C operating temperature provides flexibility when considering placement in a challenging environment.  Watchdog timer, DIO, DIN-rail mount capability, and wide input voltage range make this compact computer eligible for a multitude of applications.








Smart Performance with Longevity

A long life cycle industrial extended temperature Intel® Atom™ Apollo Lake E3930 CPU boasts a mere 6.5W TDP for cooler operation under load.  Main I/O and Display are front accessible.  The wide-range 12 – 24 VDC input accommodates most power environments and eliminates the need for a separate power adapter in most applications.


The Right I/O For Your Project

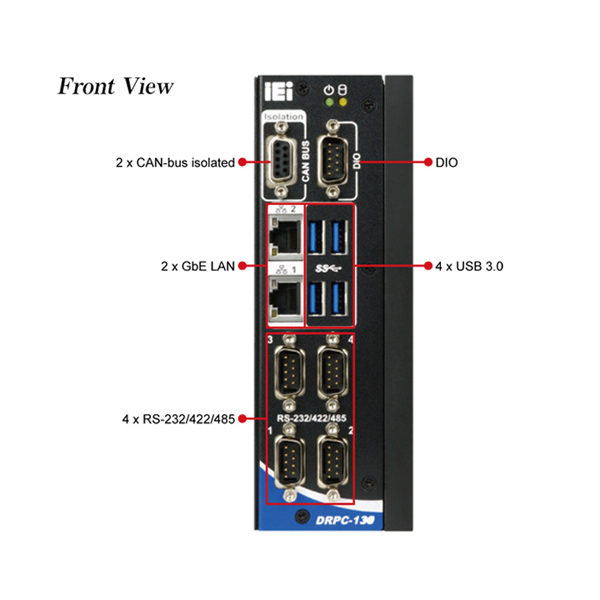

The DRPC-130 moves often used I/O to the front panel for easy access.  2.5kV isolated duel CAN Bus ports for extra protection in high static vehicle or factory environments;  4x RS-232/422/485 COM ports, 4x USB 3.0 and 1x USB 2.0 internal header.  2x GbE RJ-45 ports via PCIe Intel® I211 controller and an 8-bit DIO, 4-bit input/4-bit output, on a DB9 connector. Top side connections include 2x HDMI 1.4b @ up to 3840 x 2160, 30Hz, remote power and input power terminal blocks. Bus expansion includes 1x Half-size PCIe Mini slot and 1x Full-size PCIe Mini slot (supports mSATA, muxed with SATA).  Communication includes optional wireless capability with 1x 802.11a/b/g/n/ac.

Memory

4GB DDR3L SODIMM Memory Standard, 8GB DDR3L SoDIMM Memory

HDD/SSD Data Storage

2.5" SATA Hard Disk, 500GB, 7200RPM, 2.5" SATA Hard Disk, 1TB, 7200RPM, 2.5" 256GB SSD, 2.5" 512GB SSD, 2.5" 1TB SSD, None

Power Cable

Power cable 200mm, (A) DC jack to (B) 3-pin terminal block P=3.5, None

WiFi

1T1R Wi-Fi module kit for embedded system, IEEE802.11a/b/g/n/ac Wi-Fi with Bluetooth 4.0/3.0+HS, 1 x Wi-Fi module, 2 x 250mm RF cable, 2 x Antenna, None

Power Adapter

Power Adapter, 36W, None

TPM2.0 Module

20-pin Infineon TPM2.0 module, software management tool, firmware v5.5, None

DIN Rail Mounting Kit

Rugged DIN-Rail mounting kit only for DRPC, None

OS Image: Windows Embedded 10

OS Image with Windows® 10 IoT Enterprise Entry 64-bit for DRPC-130-AL Series, with DVD-ROM, None

Specifications

Column 1Column 2
ModelDRPC-130-AL-E1-R10
System
ProcessorIntel® Atom™ Apollo Lake x5-E3930 1.3GHz (up to 1.8 GHz, dual core, TDP=6.5W)
ChipsetSoC
Memory1x 204-pin DDR3L SO-DIMM slot (system max. 8 GB)
Watchdog TimerProgrammable 1~255 sec/min
Communication
Wireless1 x 802.11a/b/g/n/ac (optional)
I/O External
Ethernet2 x RJ-45
1 x PCIe GbE by Intel® I211 controller
USB 3.04
Video2x HDMI 1.4b up to 3840 x 2160 @30Hz
Serial4 x RS-232/422/485 (DB-9)
Digital I/O8-bit digital I/O, 4-bit input/4-bit output (DB-9)
CAN Bus1 x DB-9 w/ 2.5kV Isolation protection, supporting 2-port CAN-bus
LEDs1 x LED for HDD (Yellow), 1 x LED for Power (Green)
Buttons & Switches1 x Power Button, 1 x Reset Button, 1 x AT/ATX Switch
I/O Internal
USB 2.01 by pin header
TPM1 x TPM 2.0 (2x10 pin) (optional)
Expansion Internal
Mini-PCIe1 x Half-size Mini PCIe slot
1 x Full-size Mini PCIe slot (supports mSATA, colay with SATA)
Storage
SATA HDD1 x 2.5'' SATA 6Gb/s HDD/SSD bay
eMMC1 x eMMC 5.0 support (up to 32GB, optional)
SIM1 x Internal on-board SIM slot (optional)
Power
DC Input3-pin terminal block: 12 V ~ 24 V DC
Consumption12V @ 2.88 A (Intel® Atom™ x5-E3930 CPU with 4GB 1600 MHz DDR3L memory)
Remote PWRPSON 2-pin terminal block
Mechanical
Dimensions58.75 x 130 x 174 (WxHxD) (mm)
Weight1.4 kg/2.5 kg
MountingDIN-rail / Wall mounting
Enclosure
MaterialExtruded aluminum alloy
Environmental
Operating Temperature-20°C ~ 60°C with air flow (SSD), @10% ~ 95%, non-condensing humidity
Storage Temperature-40°C ~ 85°C with air flow (SSD), @10% ~ 90%, non-condensing humidity
Operating ShockHalf-sine wave shock 5G, 11ms, 100 shocks per axis, IEC68-2-27
Operating VibrationMIL-STD-810G 514.6C-1 (SSD)
CertificationsCE/FCC
IP LevelIP40
Supported OSMicrosoft® Windows 10 / Linux
