4U Rackmount ATX 1xPCIe & 6xPCI Computer

RM4ATX02

4U Skylake/ Kaby Lake rackmount system with a generous supply of PCI slots and one PCIe slot. Heavy duty steel electroplated chassis with a -20° – 60°C operating temperature insure harsh environment reliability.

  • LGA 1151 Intel® 6th/7th-Gen Core™ Skylake/Kaby Lake CPU
  • Long life cycle i7/ i5/ i3, Pentium®/ Celeron®
  • Dual-channel DDR4 2133 MHz memory
  • 1x PCIe x16, 6x PCI
  • Dual independent display: HDMI and DVI
  • 400W Power Supply, Standard
  • USB 3.0, 6 Gb/s SATA and full Mini PCIe slot
  • EIA RS-310 19″ Rackmount Standard
  • Washable air filter

Description
Specifications
Customize This Product
Customize This Product
Specifications
Reviews (0)

Solid Design

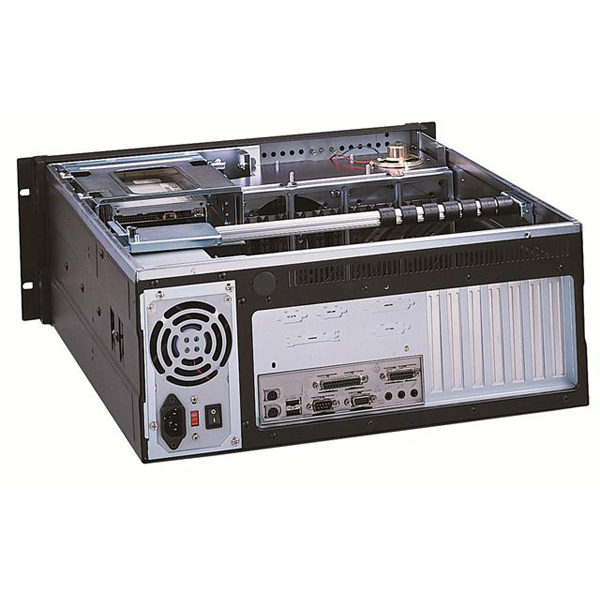

This heavy duty, cold rolled, electroplated steel chassis has two doors; one with a key lock and a filter door with a thumbscrew. Add-in card hold-down bar with individually adjustable fingers to keep cards solidly in place during movement or shipping.  The full ATX motherboard offers high capacity expansion capability with a heavy compliment of PCI slots.






Raw Performance

A long life cycle Intel® Skylake/ Kaby Lake processor combined with DDR4 2133 dual channel memory provides the needed computing power and model stability to make this system the backbone of your most demanding project. The DDR4 memory @1.2v, uses up to 40% less power than its DDR3 predecessor and has a 33% faster data transfer rate. Dual independent video display outputs increase productivity.










Targeted I/O

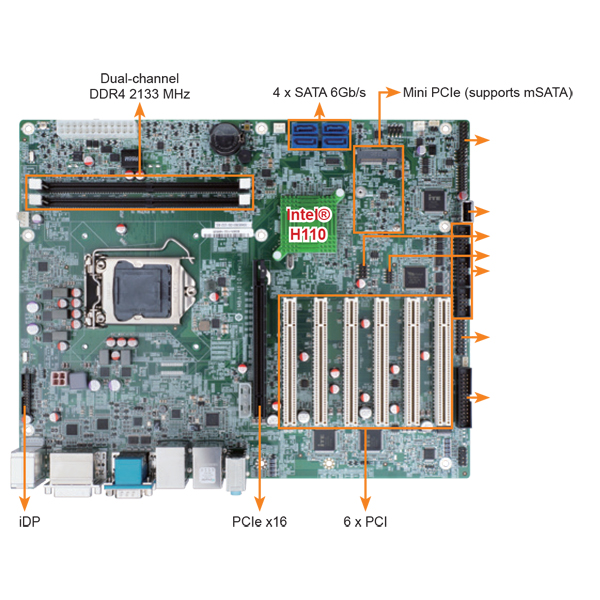

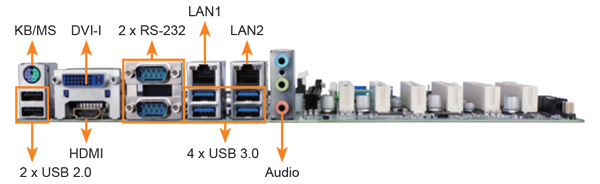

2x GbE, 4x RS232 and 9x USB ports. LPT connector and DVI-I, HDMI, and iDP for HDMI, LVDS, VGA, or DP. 4x SATA 6Gb/s. 1 x KB/MS. 1x Full size Mini PCIe slot. 8-bit DIO.

Column 1Column 2
ModelRM4ATX02
System
ProcessorIntel® 6th/7th-Gen Skylake/Kaby Lake CPU (LGA1151 socket, 65W TDP)
ChipsetIntel® H110
GraphicsIntel® HD Graphics Gen 9 engine with 16 low-power execution units, supports DX2015, OpenGL 5.X and OpenCL2.x, ES 2.0
MemoryFour 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64 GB
Watchdog TimerWatchdog Timer: Software programmable supports 1~255 sec. system reset
I/O Internal
USB2x USB 2.0 (2x4 pin, P=2.54) Chassis front
1x USB 2.0 (180° Type-A)
Serial2x RS-232 (2x5 pin, P=2.54)
Audio1x Front audio (2x5 pin)
Other1x KB/MS (1x6 pin)
1x LPT (2x13 pin, P=2.54)
I/O External
EthernetLAN1: Intel® I219LM PCIe controller
LAN2: Intel® I211 PCIe controller
USB4x USB 3.0
2x USB 3.0
Video1x DVI-I (up to [email protected])
1x HDMI 1.4 (up to [email protected])
1x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to [email protected])
Serial2x RS-232
AudioRealtek ALC662 HD codec supports 5.1-channel
3x Audio jacks (line-out, line-in, mic-in) on rear IO
Expansion Internal
PCI/PCI Express6x PCI slots
1x PCIe x 16 slot (Gen3)
Mini PCIe1x Full-size Mini PCIe card slot (supports mSATA)
DIgital I/ODigital I/O: 8-bit digital I/O (2x5 pin)
Storage
SATA HDD4x SATA 6Gb/s
Power
Power SupplyInternal 400W ATX PS/2
SwitchesPower ON/OFF Momentary (Pushbutton),
IndicatorsLEDs for Power ON/OFF, HDD Activity
Mechanical
Dimensions19" (W) x 7.0" (D) x 20.1" (H)
Weight43.5 Lbs
Enclosure
MaterialHeavy duty, cold rolled, electroplated steel
Bays3x 5.25" & 1x 3.5"
Environmental
Operating Temperature-20°C ~ 60°C
Storage Temperature-30°C ~ 70°C
Humidity10%~90% , non-condensing
Air FilterWashable air filter behind door
Fans1x 120mm, 108CFM fan & opening for optional 120mm Fan
