Rugged Fanless Expandable Computer

HM-1000S

Rugged Fanless Expandable computer. Designed for industrial automation control, video surveillance, industrial vision, and vehicle systems markets. Supports Intel® i7 / i5 / i3 LGA1150 CPU and 8GB on-board DDR3L. Shock and vibration qualified with wall mount capability. 1x PCIe x16 and 2x PCI expansion slots. VGA, HDMI, and DisplayPort video. I/O expandable with two modules.

  • Fanless Expandable Embedded System
  • Rugged solution for harsh environment
  • One Expansion Module Slot (2 Modules)
  • Three Expansion Slots
  • +9V ~ +36V Wide Range Input Power
  • Onboard 8GB DDR3L-1600
  • IEC 60068-2-64 Vibration Test / IEC 60068-2-27 Mechanical Shock Test
Clear
Description
Specifications
Customize This Product
Downloads
Reviews (0)

Tough and Expandable

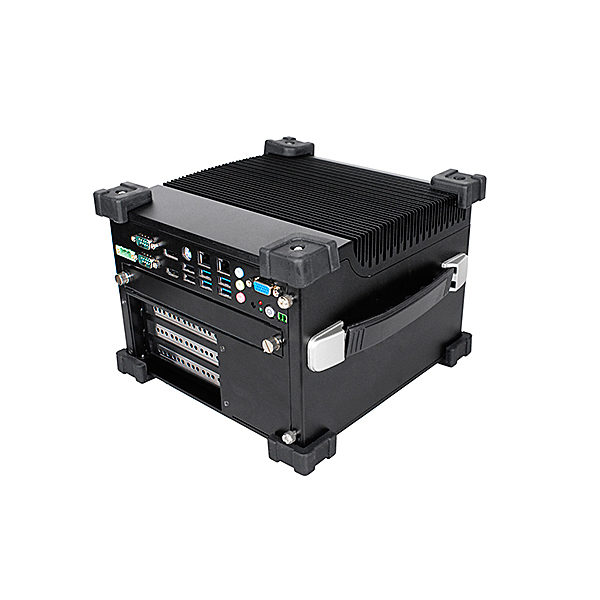

From its eight rubber bumpers to the shock and vibration qualifications, this computer is built for the rough and tumble life of a factory or other harsh environment.  The three expansion slots can be populated with a myriad of special add-in cards for applications such as SCADA remote access and control, Industrial surveillance video capture, CNC industrial automation motion control, Building surveillance alarms, and Industrial automation PLC control HMI.  The three expansion slots include 1x PCIe 3.0 x16 and 2x 32-bit PCI slots.






Built for Versatility

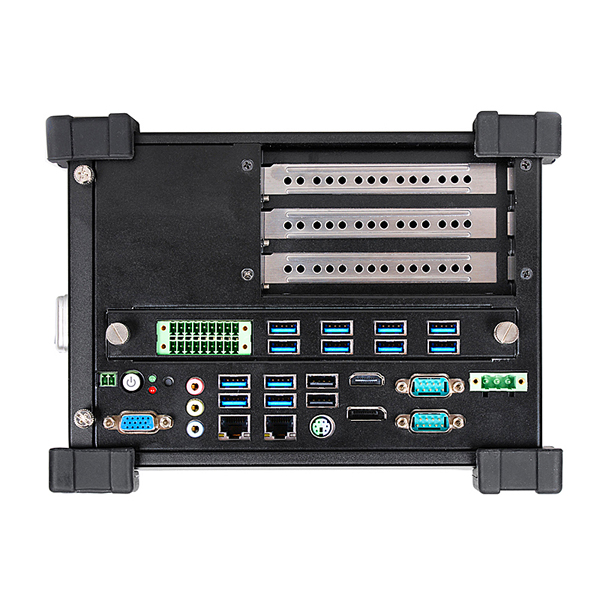

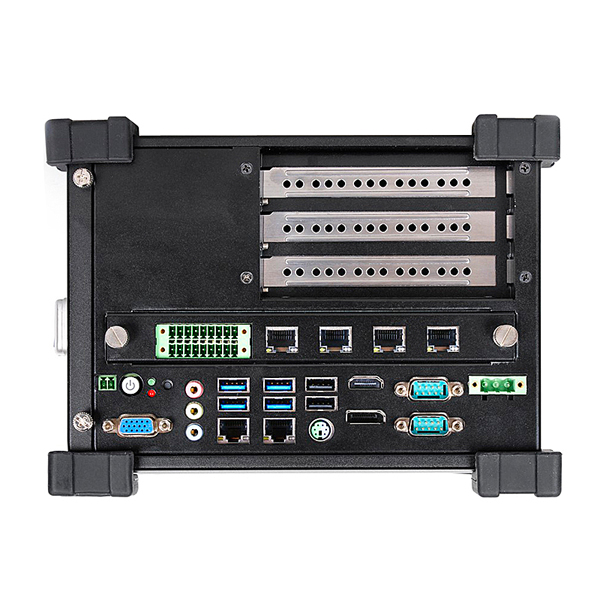

Pick one of the two optional expansion modules to add a 16-bit GPIO connector and an extra 4x LAN or 8x USB 3.0 ports depending on your project needs. Populated with an Intel® i7 / i5 / i3 LGA1150 CPU and 8GB of DDR3L memory, this system has plenty of processing power to support three loaded add-in card slots, the expansion module slot, and on-board I/O. Conforms to shock IEC 60068-2-27, 30 Grams, half-sine, 11ms, XYZ Axes and vibration IEC 60068-2-64, 5.1 Grams, Random, 10-200Hz, 500Hz, XYZ Axes operating standards. The system can be wall mounted with the included bracket kit.  Wide 9 – 36 VDC input range, remote power control, and a watchdog timer for hardware / software fault management.








I/O Plus

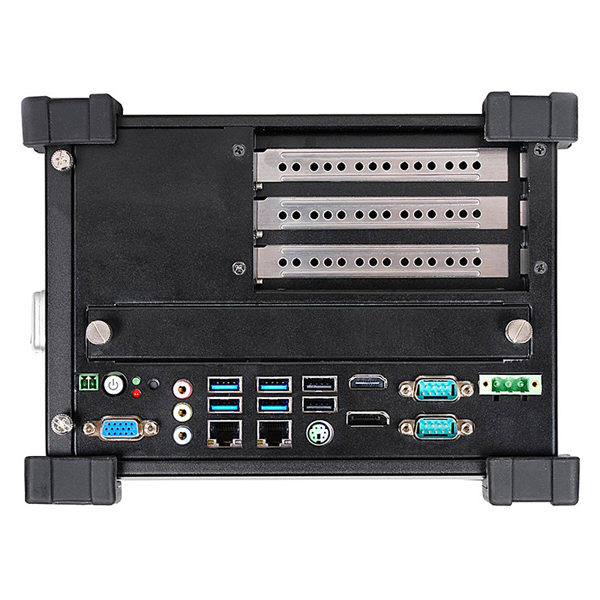

2x Intel GbE LAN from Intel® i211-AT and i219-LM controllers with iAMT support. LAN expandable to a total of 6 ports. 1x Full-size Mini PCIe slot and a 3G SIM card holder. 4x USB 3.0 ports and 2x USB 2.0 ports; expandable to 14 total USB ports. Expansion modules each include 16-bit GPIO with 5V/12V/24V power.  2x Serial Ports (RS232/422/485). 1x HDMI 1.4a @1920 x 1080, 60Hz, 1x DisplayPort 1.2 @3840 x 2160, 60Hz , and a VGA port. PS/2 combo port. Data storage is accommodated through a 2.5” SATA3 6Gb/s internal drive bay and M.2 SATA 2260/2280 slot.

System
Nuvo-5501-DIOIntel® 6th-Gen Core™ i7/ i5/ i3 compact fanless embedded controller with isolated DIO & 3x GbE
Nuvo-5501Intel® 6th-Gen Core™ i7/ i5/ i3 compact fanless embedded controller with 3x GbE
Configurations
120W AC/DC power adapter
DINRAIL-31
Accessories
CertificationsCE/FCC Class A, according to EN55022, EN55024 & EN55032
ShockOperating, 50 Grms, half-sine 11 ms duration (w/ SSD, according to IEC60068-2-27)
(w/ SSD, according to IEC60068-2-64)
VibrationOperating, 5 Grms, 5-500 Hz, 3 Axes
Humidity10%~90% , non-condensing
Storage Temperature-40°C ~ 85°C
Operating Temperature-25°C ~ 70°C */**
Environmental
MaterialAluminum, Steel
Enclosure
MountingWall-mount (standard) or DIN-rail mount (optional)
Weight2.8 kg (incl. CPU, GPU, memory and HDD)
Dimensions221 mm (W) x 173 mm (D) x 76.2 mm (H)
Mechanical
DC Input1x 3-pin pluggable terminal block for 8~35 VDC power input
Power
System Monitoring
MSATA1x full-size mSATA socket
SATA HDD1x internal SATA port for 3.5” HDD or 2.5” HDD/ SSD
Storage
control and status LED output
Remote Ctrl. & Status Output1x 2x6-pin 2.0mm pin-header connector for remote on/off
USB1x internal USB2.0 port
M.21x M.2 B keyed socket for 3G/4G SIM socket options
Mini-PCIe1x full-size mini PCI Express socket
Expansion
I/O Application Specific
USB1x internal USB2.0 port
I/O Internal
Isolated DIO8-CH isolated DI and 8-CH isolated DO (optional)
2x RS-232 ports
Serial2x software-programmable RS-232/ 422/ 485 ports
1x DVI-D connector
Video1x VGA connector
2x USB2.0 ports
USB4x USB3.0 ports
PoE+
2x Gigabit Ethernet port (via Intel I210-IT)
Ethernet1x Gigabit Ethernet port (via Intel I219-LM)
I/O External
MemoryUp to 16GB DDR4-2133 (single SO-DIMM)
GraphicsIntegrated Intel® HD 530/510 controller
ChipsetIntel® H110 platform controller hub
Intel® Celeron® G3900TE (2M Cache, 2.3 GHz, 35W TDP)
Intel® Pentium® G4400TE (3M Cache, 2.4 GHz, 35W TDP)
Intel® CoreTM i3-6100TE (4M Cache, 2.7 GHz, 35W TDP)
Intel® CoreTM i5-6500TE (6M Cache, 2.3/ 3.3 GHz, 35W TDP)
ProcessorIntel® CoreTM i7-6700TE (8M Cache, 2.4/ 3.4 GHz, 35W TDP)
