Advantech Fanless 4x USB Mini Factory Edge Gateway Computer

UNO-2271G-E22AE

Intel® Atom™ E3815/E3825 Baytrail processors are a perfect fit for this specialized fanless factory edge gateway computer.  Three mounting configurations for placement versatility.  All aluminum case for abusive factory environments.  4x USB.

  • Intel® Atom™ E3815/E3825 processor with 4GB DDR3L onboard memory
  • 2x GbE, 1x USB 3.0, 1x HDMI, 3x USB2.0
  • Compact fanless design
  • Rubber stopper design with internal reserved screws for 2nd layer assembly
  • Diverse system I/O and isolated digital I/O through iDoor technology
  • Supports Fieldbus protocol through iDoor technology
  • 3G/GPS/GPRS/Wi-Fi communication through iDoor technology
  • Supports 30+ iDoor combinations with four main categories of smart factory applications
  • 32GB eMMC storage onboard
Description
Specifications
Customize This Product
Downloads
Reviews (0)





Small and Packed with  Features

Advantech’s new generation UNO-2000 series of embedded automation computers are highly ruggedized, fanless, and modular. New series includes pocket, small, and regular-sized form-factors for different kinds of smart factory applications such as Equipment Connectivity (EC), Process Visualization (PV), Environment Management (EM), and Dispatch Management (DM).  The modular design of UNO- 2271G features optimized I/O in three different configurations. It also supports Advantech’s iDoor technology via a second expansion stack.

For wireless data transmission in non-cabled environments, the UNO-2271G has room for a 3G/GPS/GPRS/Wi-Fi communication module through iDoor technology.


A Cool Performer

The UNO-2271G Intel® Atom E3815/E3825 SOC processor boasts a 5W TDP that helps to keep this unit cool under load in a busy factory environment.   The 10 to 30VDC wide-range DC input accommodates a multitude of bus designs and eliminates the need for a separate power adapter in many applications.  Vibration and shock specifications include operating: IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA) and operating: IEC 60068-2-27, 50G, half sine, 11ms.










Tailored I/O

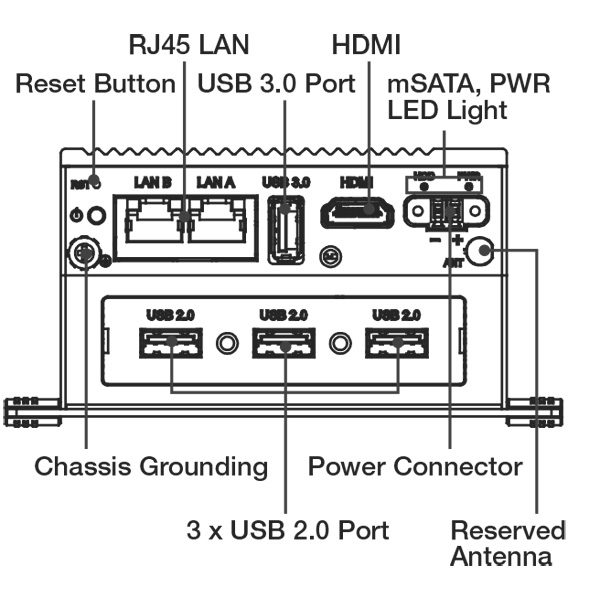

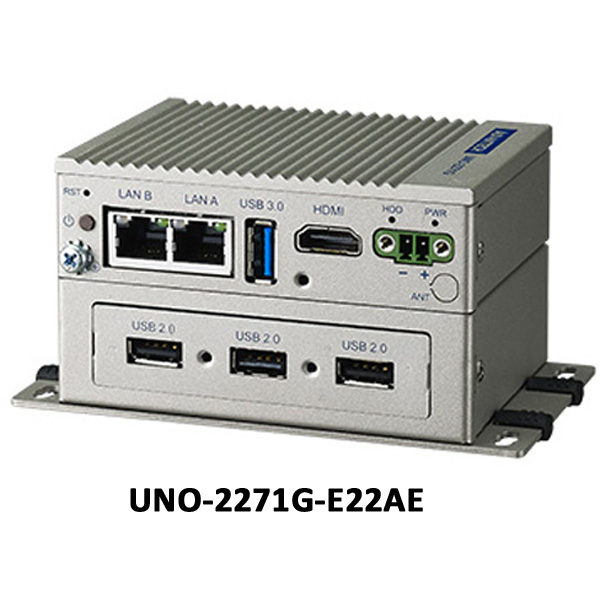

UNO-2271G-E22AE  specialized I/O includes 2x GbE, 1x USB 3.0, 1x HDMI and 3x USB2.0.  Extended input voltage range of 10-30 VDC on a 2-pin terminal block. Includes 2x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet and 2x full-sized mini PCI Express sockets.

Column 1Column 2
ModelUNO-2271G-E21AE/E22AE/E23AE
System
ProcessorSupports Intel® Atom Processor E Series
Intel® Atom E3815 Single Core 1.46GHz
Intel® Atom E3825 Dual Core 1.33Ghz
System ChipIntel Atom SoC integrated
BIOSAMI EFI64 Mbit
MemoryOnboard 4GB DDR3L 1066 MHz
Graphics EngineIntel® HD Graphics
Watchdog TimerProgrammable 255 levels timer interval, from 1 to 255 sec
Digital I/OIsolated digital I/O by iDoor technology
FieldbusSupports Fieldbus protocol by iDoor technology
ApplicationsSupports 30+ iDoor combinations with 4 main categories of smart factory applications
OS SupportFor mSATA storage: Windows7, Windows10 LTSB, Advantech Linux
For eMMC storage: Advantech embedded customized Windows7 64bits,
Windows 10 LTSB, Advantech Linux
Communication
Wireless3G/GPS/GPRS/Wi-Fi communication by iDoor technology
I/O External
EthernetRealtek RTL8111E GbE, 802.10av
2 x RJ45, 10/100/1000 Mbps IEEE 802.3u, 1000BASE-T Fast Ethernet
USB1 x USB 3.0 for UNO-2271G-E21BE/E021AE
3 x USB 2.0 and 1 x USB 3.0 for UNO-2271G-E22BE/ E022AE
Video1 x HDMI, supports 1920 x 1080 @ 60Hz
Serial2 x RS 232/422/485 for UNO-2271G-E23BE/ E023AE
I/O Internal
USB1 x USB 3.0 for UNO-2271G-E21BE/E021AE
3 x USB 2.0 and 1 x USB 3.0 for UNO-2271G-E22BE/ E022AE
Expansion
Mini-PCIe1 x Full-size mPCIe slot
Storage
eMMCOnboard 32GB eMMC
mSATAOptional mSATA shared with mPCIe slot
Power
DC Input10 ~ 30VDC
Power Connector1 x 2 Pins, Terminal Block
Consumption12W (Typical), 24W (Max)
LEDsLEDs for Power, HDD, LAN (Active, Status)
Mechanical
Form FactorPocket Size, same dimension as standard 2.5" SSD/ HDD
Dimensions100 x 70 x 30 mm (3.9" x 2.8" x 1.2"),  UNO-2271G-E21BE/E021AE
100 x 70 x 60 mm (3.9" x 2.8" x 2.6"), UNO-2271G-E22BE/E23BE/E022AE/E023AE
Weight0.5 kg (1.1lbs) for UNO-2271G-E21BE/E021AE
0.6 kg (1.2lbs) for UNO-2271G-E22BE/ E022AE and E23BE/ E023BE
MaterialAluminum Housing
MountingStand, Wall, VESA (Optional), DIN-rail (Optional),  Pole (Optional)
Environmental
Operating Temperature0 ~ 50°C (32 ~ 122°F) @ 5 ~ 85% RH with 0.7 m/s airflow
Humidity10 ~ 95% RH @ 40°C, non-condensing
Storage Temperature- 20 ~ 70°C ( -4 ~ 158°F)
Operating ShockOperating, IEC 60068-2-27, 50G, half sine, 11 ms
Operating VibrationOperating, IEC 60068-2-64, 2 Grms, random, 5 ~ 500 Hz, 1hr/axis (mSATA)
IngressIP30
CertificationsCE, FCC, UL, CCC, BSMI
