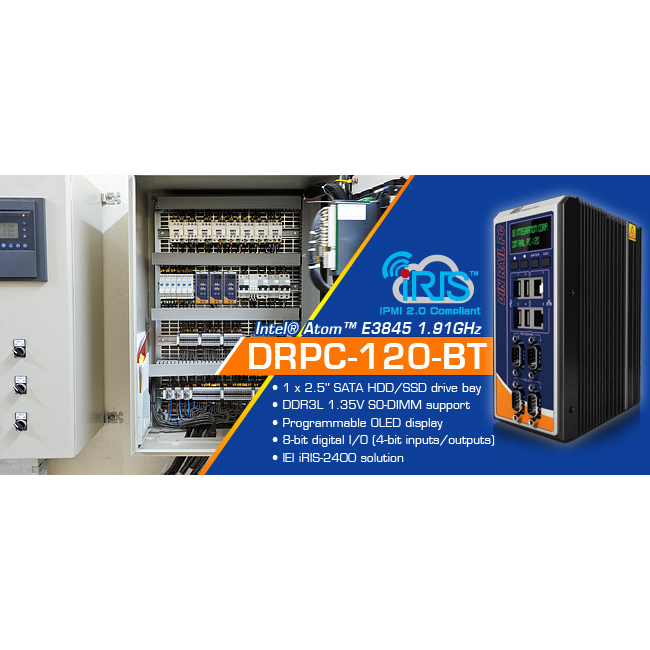

Industrial Fanless Compact DIN-Rail OLED Computer

DRPC-120-BTi OLED

Industrial DIN-rail fanless embedded controller offers easy component installation.  On-Board API status monitoring with programmable OLED display and function keys.  DIO and wide-range VDC input.  The DRPC-120 is prepared for a busy factory environment with isolated COM ports to aid ESD protection and vibration/shock qualification.

  • Intel® Atom™ E3845 1.91GHz
  • 9 – 28 VDC extended input voltage range
  • 1 x 2.5′ SATA HDD/SSD drive bay
  • 2GB DDR3L 1.35V SO-DIMM
  • OLED programmable display and function keys
  • 8-bit DIO (4-bit inputs/outputs)
  • IEI iRIS-2400 solution

Description
Additional information
Specifications
Customize This Product
Reviews (0)

Practical Design

A 2.9 x 5.5 x 6.8 inch footprint ensures this industrial DIN-rail embedded controller can be deployed in a restrictive space.  The quiet fanless design guards against intrusion of airborne contaminants.  Shock tested and built to withstand vibration per MIL-STD-810F standards.  A generous -20 – 60°C operating temperature provides flexibility when considering placement in factory environments.  With the optional IRIS-2400 module, the DRPC-120 can complete your IoT application with advanced remote control features, such as power management and control, remote KVM for device status monitoring and the ability to send active alerts and warning messages by e-mail or SMS.  The OLED display and function keys are programmable and support both graphic and text formats.   Open protocol & demo source code for users to program their own usage.






Smart Performance with Longevity

A long life cycle quad core industrial extended temperature Intel® Atom™ E3845 CPU boasts a miserly 10W TDP for cooler operation under load.  Main I/O and Display are front accessible.  The wide-range 9 – 28 VDC input accommodates most power environments and eliminates the need for a separate power adapter in most applications.




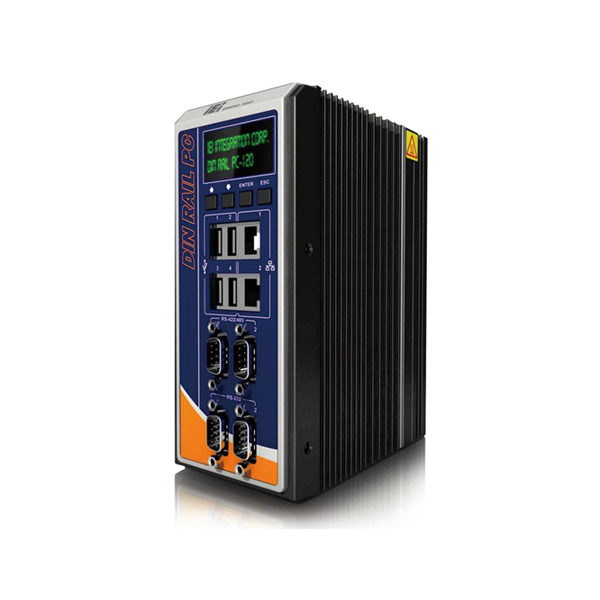

The Right I/O For Your Project

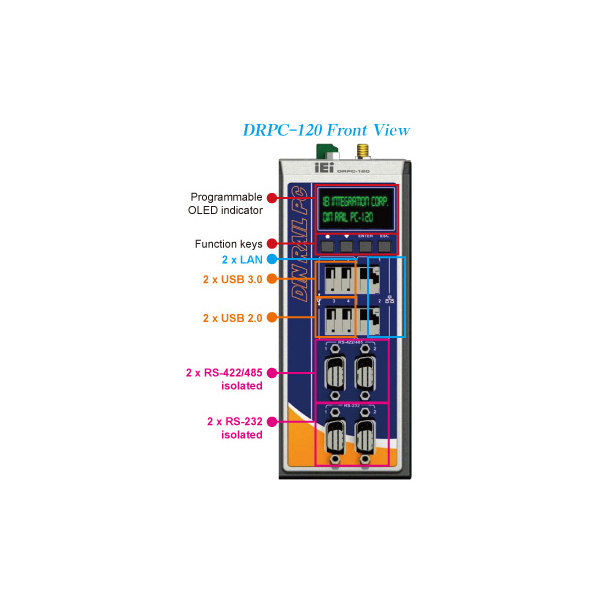

The DRPC-120 designers put the critical I/O up front where it belongs.  3Kv isolated COM ports for extra protection in high ESD factory environments;  2x RS-232 and 2x RS-422/485.  2x USB 3.0 and 2x USB 2.0 connectors.  Two GbE RJ-45 ports are included with a 1x  PCIe GbE Intel® I210 controller and 1x PCIe GbE Intel® I211 controller.  Top side connections include 8-bit DIO, 4-bit input/4-bit output, 1x VGA and 1x HDMI @ up to 1920 x 1200, 60Hz.  Bus expansion includes 1x Half-size PCIe Mini slot (w/o USB signal) and 1x Full-size PCIe Mini slot (supports mSATA, muxed with SATA).  Communication includes optional wireless capability with 1x 802.11a/b/g/n/ac.

Memory

2GB DDR3L SoDIMM Memory Standard, 4GB DDR3L SoDIMM Memory, 8GB DDR3L SoDIMM Memory

HDD/SSD Data Storage

None, 2.5" SATA Hard Disk, 500GB, 7200RPM, 2.5" SATA Hard Disk, 1TB, 7200RPM, 2.5" 256GB SSD, 2.5" 512GB SSD, 2.5" 1TB SSD

mSATA Data Storage

None, mSATA MLC 128GB SSD 0 to 70°

OS Image

None, OS Image with Windows® Embedded Standard 7 E for DRPC-120, CD-ROM

Wifi

None, 1T1R wifi module kit for embedded system, IEEE802.11a/b/g/n/ac WiFi with Bluetooth 4.0/3.0+HS, 1 x wifi module, 2 x 250mm RF cable, 2 x antenna

Power Adapter

None, Power Adapter, 36W

Power Cable

None, Power cable 200mm, (A) DC jack to (B) 3-pin terminal block

DIN Rail Kit

None, Rugged DIN-Rail mounting kit only for DRPC

Specifications

Column 1Column 2
ModelDRPC-120-BTi-E5-LED/2G-R10
System
ProcessorIntel® Atom™ Baytrail E3845 (1.91 GHz, 2M Cache)
ChipsetSoC
Memory1 x 204-pin DDR3L SO-DIMM, 2 GB pre-installed (system max: 8GB)
IPMI iRIS Solution1 x iRIS-2400 (optional)
Communication
Wireless1 x 802.11a/b/g/n/ac (optional)
I/O External
Ethernet2 x RJ-45
1x PCIe GbE by Intel® I210 controller
1 x PCIe GbE by Intel® I211 controller
USB2x USB3.0
2x USB2.0
Video1x VGA up to 1920 x 1200 @60Hz
1x HDMI up to 1920 x 1200 @60Hz
Serial2 x RS-232 (DB-9 w/3KV isolation protection*)
2 x RS-422/485 (DB-9 w/3KV isolation protection*)
Digital I/O8-bit digital I/O, 4-bit input/4-bit output
Expansion Internal
Mini-PCIe1 x Half-size Mini PCIe slot (w/o USB signal)
1 x Full-size Mini PCIe slot (supports mSATA, colay with SATA)**
Storage
SATA HDD1 x 2.5'' SATA 3Gb/s HDD/SSD bay
Power
DC Input3-pin terminal block: 9 V ~ 28 V DC
Consumption12 V @ 2.1A, (Intel® Atom™ E3845 with 2 GB memory )
Mechanical
Dimensions74.08 x 140 x 171.5 (WxHxD) (mm)
Weight1.4 kg/2.5 kg
MountingDIN-rail
Enclosure
MaterialExtruded aluminum alloy
Environmental
Operating Temperature-20ºC ~ 60ºC with air flow (mSATA),
Storage Temperature-30°C ~ 70°C
Humidity5% ~ 95%, non-condensing
Operating ShockHalf-sine wave shock 5G, 11ms, 3 shocks per axis
Operating VibrationMIL-STD-810F 514.5C-2 (with SSD)
CertificationsCE/FCC
Supported OSMicrosoft® 8,Microsoft® Windows® Embedded Standard 7 E
