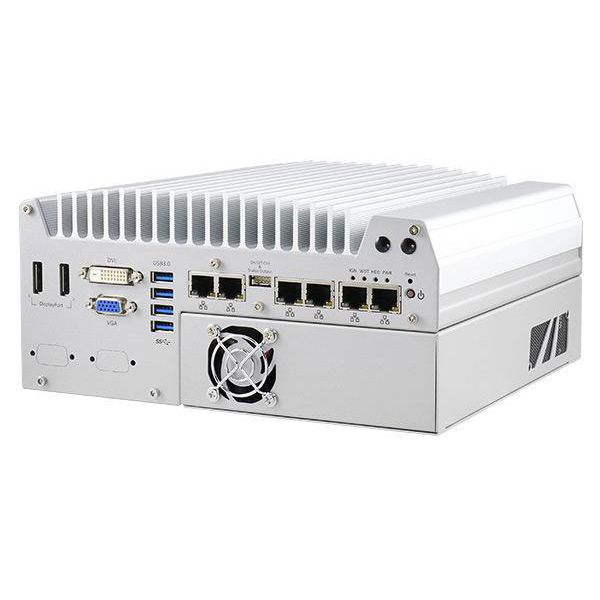

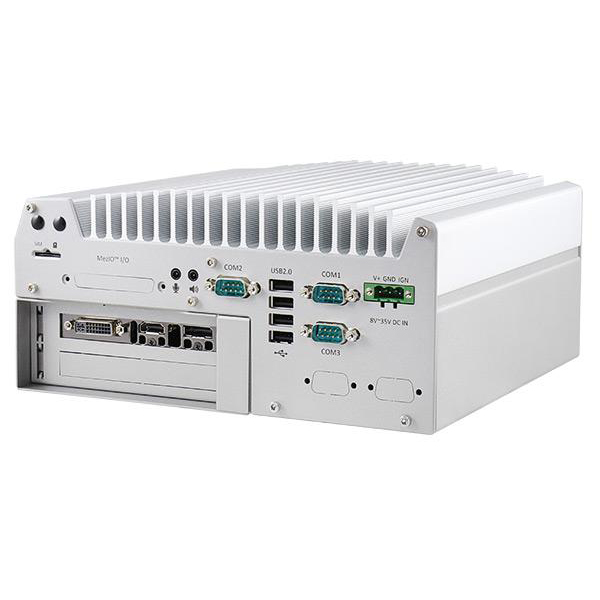

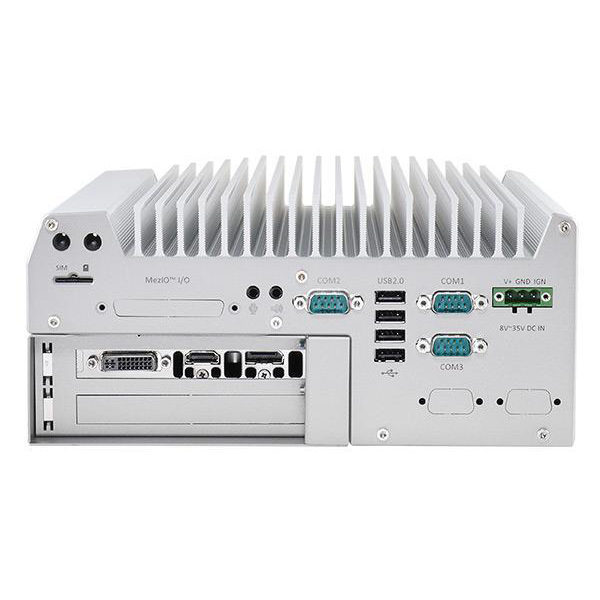

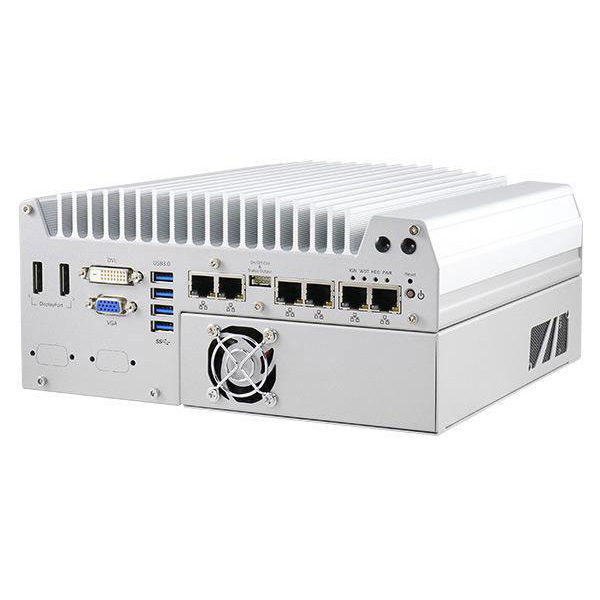

Rugged Compact GPU-Accelerated 768 CORE Computer

Nuvo-5095GC

The first embedded controller for GPU intensive applications including CUDA computing, autonomous driving, AI inference and virtual reality. The feature leaden Nuvo-5095GC is a rugged, compact, powerful GPU-computing platform with a pre-installed Gigabyte® GTX1050Ti-D5-4G (75W) GPU card delivering 768 CUDA cores for arithmetic/graphics tasks. A powerful long life cycle Skylake CPU makes for a stable model configuration over time.

  • Long Life Cycle Intel® Skylake processor
  • Pre-installed Gigabyte® GTX1050Ti-D5-4G (75W) GPU card
  • Intel® 6th-Gen Core™ LGA1151 CPU
  • DDR4-2133 SoDIMM
  • Patented rugged thermal design
  • -25°C to 60°C extended operating temperature @100% load
  • 6x GbE ports for 9.5KB jumbo frame
  • 9.5 x 8.9 x 4.4 inch compact footprint
  • 8x USB ports
  • Accommodates 2x 2.5″ SATA HDD/ SSD with RAID 0/ 1 support
  • MezIO™ compatible interface for function expansion
  • Patented ventilation design for graphics card with pre-installed fan
  • Extended power input range from 8 to 35 VDC, remote On/Off
Description
Additional information
Specifications
Customize This Product
Reviews (0)

A GPU Hot Fudge Sundae

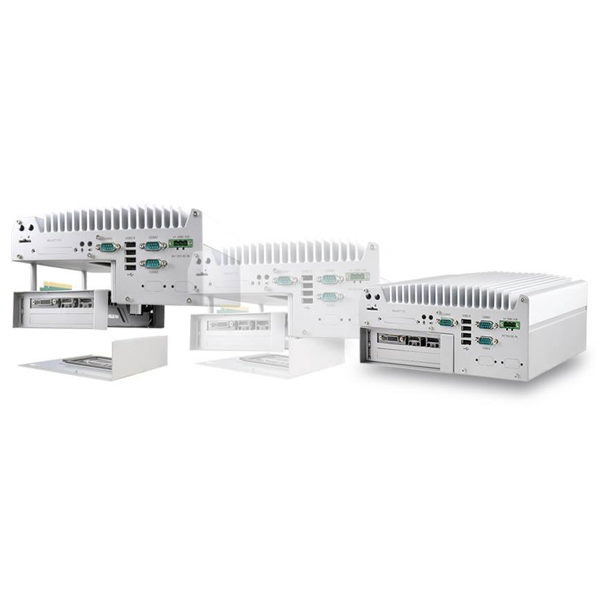

Combine a 9.5 x 8.9 x 4.4 inch footprint with a 75W 768 CUDA GPU card, -25°C to 60°C extended operating temperature @100% load and an Intel® 6th-Gen Skylake CPU and you get the perfect combination of brains, braun, and size efficiency for GPU-accelerated tasks. The pre-installed Gigabyte® GTX1050Ti-D5-4G (75W) GPU card in the Nuvo-5095GC has its own patented thermal ventilation system and the main computer’s quiet fanless design guards against intrusion of airborne contaminants. Exceptional main compartment thermal performance is achieved through an innovative thermal transfer system that conducts heat 10x better than traditional fanless designs. The Neousys thermal pad liquefies when heated by the CPU while springs push the CPU closer to the chassis heatsink for optimal heat transfer. The Nuvo-5095GC recently played a major role in Baidu’s Apollo autonomous driving platform. The Baidu project is an open source code platform and its’ capabilities in obstacle perception, trajectory planning, vehicle control, vehicle operating systems and other functions, as well as the complete set of testing tools will soon be made available.




Performance Plus

Intel’s® Long Life Cycle 6th-Gen Skylake i7/i5 CPU brings an 11% IPC improvement along with 22% power reduction contributing to a significant efficiency boost.  Due to the long life cycle CPU, product model changes are curbed or eliminated over time to keep recurring project costs to a minimum.  Additionally, the jump to faster DDR4-2133 memory increases the Nuvo-5095GC GPU card FPS rate. The extended power input range of 8 to 35 VDC eliminates the need for a separate power adapter in many applications.


You Have Connections

Specialized I/O includes 8x GbE, 8x USB and 3x COM ports with optional 802.3at PoE+ PSE for GbE Port 3-6 with 80 W for total power budget.  2x internal SATA ports for 2.5″ HDD/SSD installation, supporting RAID 0/1.  Bus expansion includes 1x full-size mSATA port (muxed with mini-PCIe),  1x internal mini PCI Express socket with front-accessible SIM socket, and 1x internal mini PCI Express socket with internal SIM socket (muxed with mSATA).  Optional 8-CH isolated DI and 8-CH isolated DO provides a versatile interface for automation tasks.  On/Off remote control.  VGA, DVI-D, and 2x DisplayPort connectors with 4K2K resolution. The Nuvo-5095GC is a rugged long life cycle GPU computing platform tough enough for environmentally challenging installations.

Socket 1151 Skylake Processor

Intel® Core™ i7-6700TE (8M Cache, 2.4/ 3.4 GHz, 35W TDP), Intel® Core™ i5-6500TE (6M Cache, 2.3/ 3.3 GHz, 35W TDP), Intel® Core™ i3-6300TE (4M Cache, 3.3 GHz, 35W TDP)

Memory

4GB DDR4 Memory, 0 – 85 °C Operating Temperature, 8GB DDR4 Memory, 0 – 85 °C Operating Temperature, 16GB DDR4 Memory, 0 – 85 °C Operating Temperature

1st SSD/HDD Data Storage

2.5" SATA Hard Disk, 500GB, 7200RPM, 2.5" SATA Hard Disk, 1TB, 7200RPM, 2.5" 256GB MLC SSD, Operating temperature : 0 to 70 °C, 2.5" 512GB MLC SSD, Operating temperature : 0 to 70 °C, 2.5" SATA SSD 1TB TLC 0~70°C, None

2nd SSD/HDD Data Storage

None, 2.5" SATA Hard Disk, 500GB, 7200RPM, 2.5" SATA Hard Disk, 1TB, 7200RPM, 2.5" 256GB MLC SSD, Operating temperature : 0 to 70 °C, 2.5" 512GB MLC SSD, Operating temperature : 0 to 70 °C, 2.5" SATA SSD 1TB TLC 0~70°C

mSATA Data Storage

None, mSATA MLC 128GB SSD 0 to 70°C

Power Adapter

160W AC/DC power adapter, None

Specifications

Column 1Column 2
ModelNuvo-5095GC-GTX1050Ti-ixQC
System
ProcessorSupports Intel® 6th-Gen Core™ Skylake LGA1151 CPU
Intel® Core™ i7-6700TE (8M Cache, 2.4/ 3.4 GHz, 35W TDP)
Intel® Core™ i5-6500TE (6M Cache, 2.3/ 3.3 GHz, 35W TDP)
ChipsetIntel® Q170 Platform Controller Hub
GraphicsGigabyte® GTX1050Ti-D5-4G (75W) GPU card in thermally controlled expansion cassette
MemoryUp to 32 GB DDR4-2133 SDRAM (dual SO-DIMM sockets)
AMTSupports AMT 11.0
TPMSupports TPM 2.0
I/O External
Ethernet6x Gigabit Ethernet ports, one via Intel® I219 and five via I210
PoE+Optional IEEE 802.3at PoE+ PSE for GbE Port 3 ~ Port 6, 80 W total power budget
USB4x USB 3.0 ports via native XHCI controller
4x USB 2.0 ports
Video Port (Integrated Graphics)1x stacked VGA + DVI-D connector
2x DisplayPort connectors, supporting 4K2K resolution
Serial2x software-programmable RS-232/422/485 port (COM1 & COM3)
1x RS-232 port (COM2)
Audio1x Mic-in and 1x Speaker-out
Expansion
Mini-PCIe1x internal mini PCI Express socket with front-accessible SIM socket
1x internal mini PCI Express socket with internal SIM socket (mux with mSATA)
Expandable I/O1x MezIO™ expansion port for Neousys' MezIO™ modules
M.21x M.2 B keyed socket for 3G/4G SIM socket options
USB1x internal USB2.0 port
Storage
SATA HDD2x internal SATA port fors 2.5" HDD/SSD installation, supporting RAID 0/1
mSATA1x full-size mSATA port (mux with mini-PCIe)
Power
DC Input1x 3-pin pluggable terminal block for 8~35 VDC power input
Remote Ctrl. & Status Output1x 10-pin (2x5) wafer connector for remote on/off control and status LED output
Mechanical
Dimensions240 mm (W) x 225 mm (D) x 111 mm (H)
Weight4.8 kg (including CPU, GPU, memory and HDD)
MountingWall-mount by mounting bracket
Environmental
Operating Temperaturewith i7-6700TE, i5-6500TE (35W TDP), -25°C ~ 60°C **
Storage Temperature-25°C ~ 60°C **
Humidity10%~90% , non-condensing
VibrationOperating, 5 Grms, 5-500 Hz, 3 Axes
(w/ SSD, according to IEC60068-2-64)
ShockOperating, 50 Grms, half-sine 11 ms duration (w/ SSD, according to IEC60068-2-27)
CertificationsCE/FCC Class A, according to EN55022, EN55024 & EN55032
** The high operating temperature specified here is defined under the condition of 100% GPU loading applied using TessMark x64 GPU stress test.
**For sub-zero operating temperature, a wide temperature range HDD drive or Solid State Disk (SSD) is required
