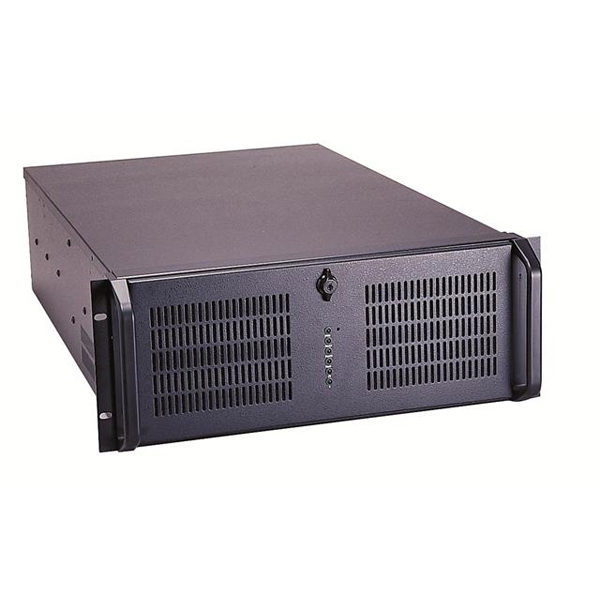

4U Rackmount 19 Slot PICMG 1.3 16xPCI & 1xPCIe x16 & 1xPCIe x1 Computer

RM4SBC01

4U Skylake/ Kaby Lake rackmount system with a generous supply of PCI slots and two PCIe slots. Heavy duty steel electroplated chassis with a -20° – 60°C operating temperature and Thermal Management System (TMS) insure harsh environment reliability.

  • LGA 1151 Intel® 6th/7th-Gen Core™ Skylake/Kaby Lake CPU
  • Long life cycle i7/ i5/ i3, Pentium®/ Celeron®
  • Dual-channel DDR4 1866/2133 MHz UDIMM Memory to 64GB
  • 16x PCI, 1x PCIe x16, 1x PCIe x1 slots
  • Dual independent display: VGA and DP internal header
  • 400W power supply standard, mini dual redundant optional
  • Thermal Management System (TMS) standard
  • USB 3.0, 6 Gb/s SATA and full/half Mini PCIe slot
  • EIA RS-310 19″ Rackmount Standard
  • Washable air filter

Clear
Description
Customize This Product
Specifications
Customize This Product
Reviews (0)

A Behemoth

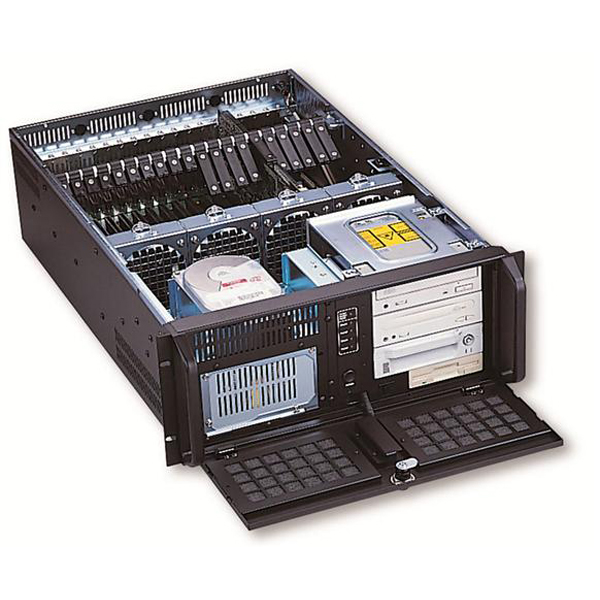

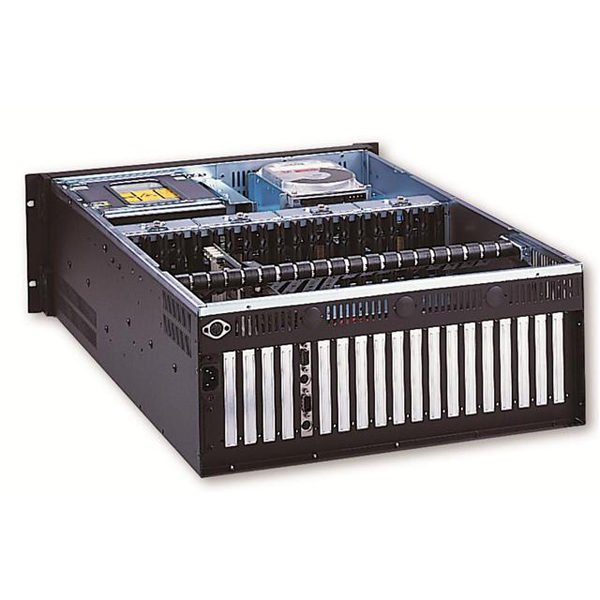

This heavy duty, cold rolled, electroplated steel chassis has sixteen PCI slots.  Thermal Management System (TMS) and add-in card hold-down bar with individually adjustable fingers to keep cards solidly in place during movement or shipping.  The PICMG 1.3 SBC offers dual independent display outputs and four DDR4 Dual channel memory slots.




Power and Speed

A long life cycle Intel® Skylake/ Kaby Lake processor combined with DDR4 2133 dual channel memory provides the needed computing power and model stability to make this system the backbone of your most demanding project. The DDR4 memory @1.2v, uses up to 40% less power than its DDR3 predecessor and has a 33% faster data transfer rate. Dual independent video display outputs increase productivity.  The included Thermal Management System (TMS) incorporates temperature sensing with fan monitoring and audible / visible alarms to insure the 5-fan thermal setup is functioning as designed.










I/O to Spare

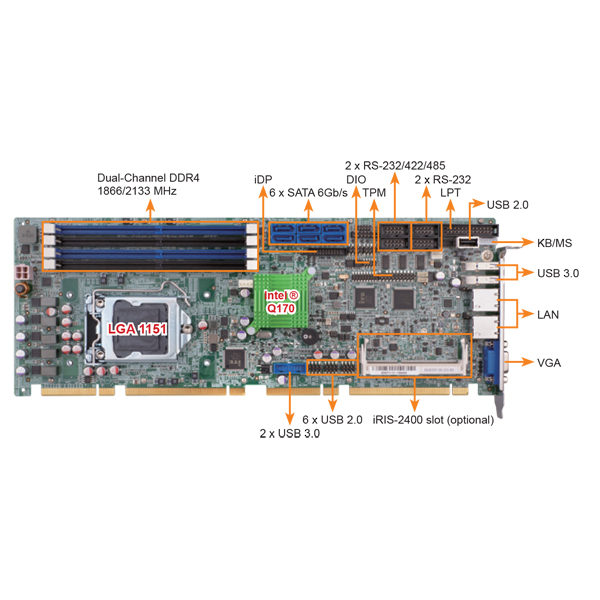

2x GbE, 4x RS232 and 9x USB ports. LPT connector and DVI-I, HDMI, and iDP for HDMI, LVDS, VGA, or DP. 4x SATA 6Gb/s. 1 x KB/MS. 1x Full size Mini PCIe slot. 8-bit DIO.



Specifications

Column 1Column 2
ModelRM4SBC01
System
ProcessorIntel® 6th/7th-Gen Skylake/Kaby Lake CPU (LGA1151 socket, 65W TDP)
ChipsetIntel® Q170
GraphicsIntel® HD Graphics Gen 9 engine supports DX11/12, OpenGL 4.3/4.4 and OpenCL2.x, ES 2.0 Decode/Encode for HEVC, VP8, VP9, VDENC
MemoryFour 288-pin 1866/2133 MHz dual-channel unbuffered DDR4 DIMMs support up to 64GB
BIOSUEFI BIOS
Watchdog TimerWatchdog Timer: Software programmable supports 1~255 sec. system reset
I/O Internal
USB6 x USB 2.0 (2x4 pin, P=2.54)
Video1x iDP interface for HDMI, LVDS, VGA, DVI and DisplayPort (up to [email protected])
Serial2x RS-232/422/485 (2x5 pin, P=2.54)
Audio7.1 channel HD audio with optional kit
Other1x KB/MS (1x6 pin)
1x LPT (2x13 pin, P=2.54)
I/O External
EthernetLAN1: Intel® I219LM Clarkville-V with Intel® AMT 11.0 supported
LAN2: Intel® I210 PCIe controller
USB2x USB 3.0 on backwindow
2x USB 3.0 on front
Serial2x RS232 rear slot
Video1x VGA (up to [email protected] Hz)
Expansion Internal
PCI/PCI Express16x PCI slots
1x PCIe x 16 slot
1x PCIe x 1 slot
Mini PCIe1x Full / half-size Mini PCIe slot
Digital I/ODigital I/O: 8-bit digital I/O (2x5 pin)
Storage
SATA HDD2x SATA 6Gb/s (RAID 0/1/5/10 supported)
mSATA1 x mSATA (SATA & USB signal)
Power
Power SupplyInternal 400W ATX PS/2, dual redundant optional
SwitchesPower ON/OFF Momentary (Pushbutton),
IndicatorsLEDs for power ON/OFF, HDD activity, thermal management
Mechanical
Dimensions19" (W) x 7.0" (H) x 26.4" (D)
Weight52.5 Lbs
Enclosure
MaterialHeavy duty, cold rolled, electroplated steel
Bays3x 5.25" & 1x 3.5"
Environmental
Thermal Management System3pin fan connectors. LED and Audible alarms with sensor wires
Operating Temperature-20°C ~ 60°C
Storage Temperature-30°C ~ 70°C
Humidity10%~90% , non-condensing
Air FilterWashable air filter behind door
FansHot Swappable 4x (92mm = 51CFM ea.) Fans & 1x (80mm = 42.5 CFM ea.) Fan
