Rugged Fanless Medical Computer

HTB-100-HM170

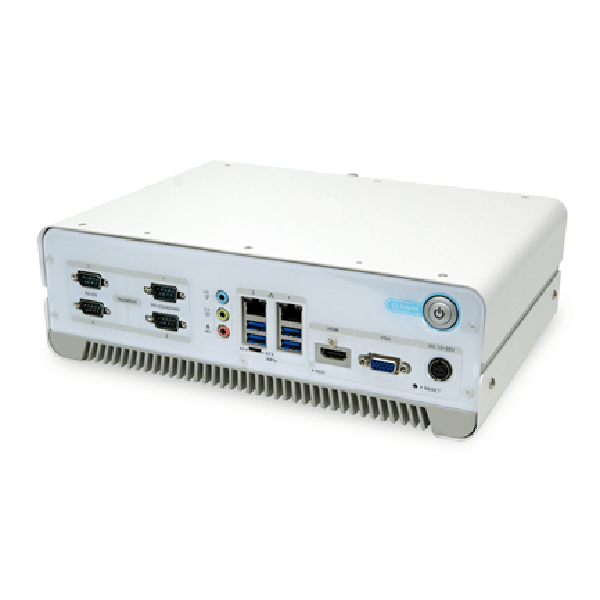

The HTB-100-HM170 handles the high-speed 4k video processing and inter-device connectivity requirements of the operating room and an operating room/ICU environmental control system with ease.  All this in an IEC, ISO and FCC medically compliant ergonomically designed footprint.

  • Medical grade with high performance fanless embedded computing
  • 6th-Gen Intel® Core™ Skylake processor platform
  • Intel® HM170 chipset and DDR4 memory
  • Triple independent display with high resolution support
  • Isolated COM ports for enhancing safety among devices
  • Optional PCIe x16 expansion slot supports more flexible functions

Description
Additional information
Specifications
Customize This Product
Reviews (0)

Details Matter

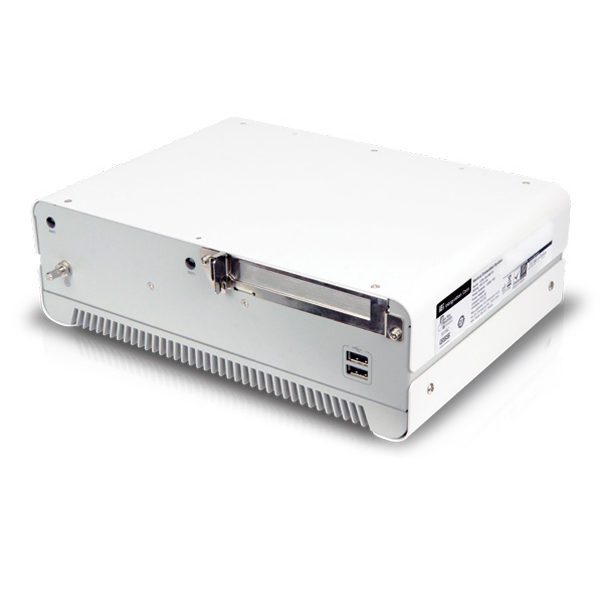

The HTB-100 is compliant with medical standards, IEC 60601-1 V3.1, IEC 60601-1-2 V4.0, IEC 62304, IEC 62366, ISO 14971 and FCC part 18 class B, making it a pre-screened ready-to-use medical computer.  Flexible expansion adds to the HTB-100’s versatility.  The HTB-100 reserves a PCIe x16 slot for add-in expansion such as a high-speed video capture card used for medical imaging inspection during surgery.  The HTB-100 is equipped with an easily maintained flat waterproof top cover to prevent cleaning damage or liquid intrusion which may indirectly affect patients.  A cable cover protects the HTB-100 I/O area from dust and liquid ingress allowing the medical staff to easily manage I/O port cables and make the medical environment cleaning process more efficient.


Rock Solid Performance & Model Longevity

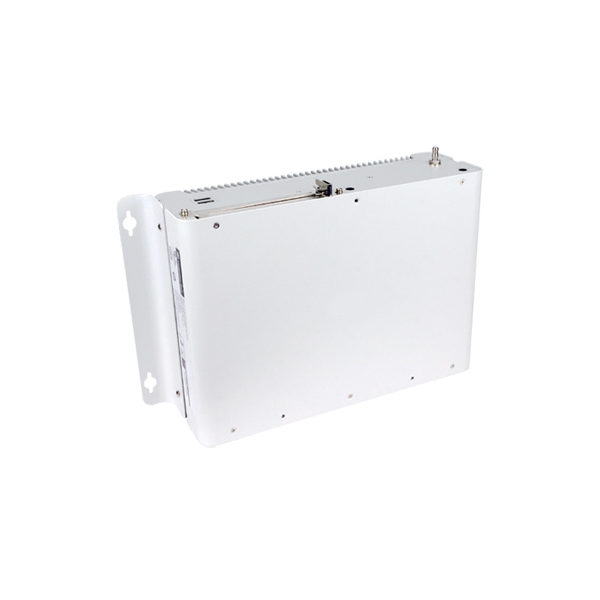

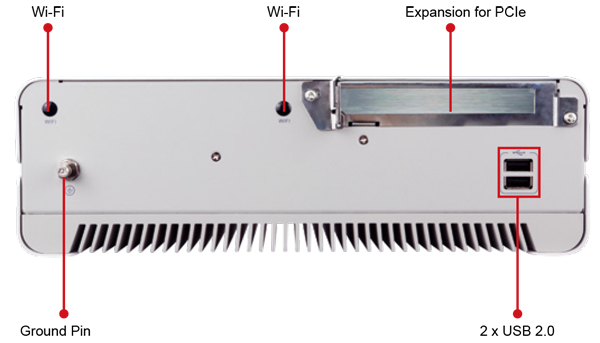

The COM ports incorporate 2.5kV isolation compliant with the IEC 60601-1-2 V4.0 medical standard. The added protection guards against costly equipment damaging power spikes and provides a layer of protection for patients and medical staff.  The HTB-100 is fanless and avoids the added noise, cost and downtime associated with cooling fans.  The ribbed computer heatsink is located on the bottom of the computer making the top of the HTB-100 easier to clean.  An extra case ground pin gives any static electricity a safe route away from the patient and prevents static charges from building up in the non-current carrying conductive case.  The HTB-100 can be mounted vertically or horizontally on a cart or wall with the included mounting brackets.  The system is shock verified and conforms to the MIL-STD-810G 514.6 C-1 vibration standard to withstand repositioning and the rigors of cart movement.  Powered by a long life cycle 6th-Gen Intel® Core™ Skylake i5/i7 processor and advanced DDR4 memory, the HTB-100 can power through CPU intensive tasks and effortlessly tackle the 4k video processing demands of a busy operating room.


Specially Designed I/O

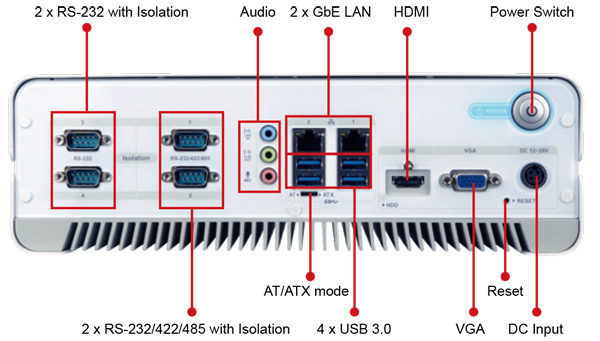

2x RS-232 and 2x RS-232/422/485 COM ports support 2.5kV isolation conforming to the IEC 60601-1-2 V4.0 medical standard. 2 x RJ-45 PCIe GbE ports are available using an Intel® I211 controller.  Expansion includes 1x PCIe x16, 1x Half-size Mini PCIe, 1x Full-size Mini PCIe (supports mSATA, muxed with SATA) and 1x M.2 A & E key (2230/ USB or PCIe).  Flexible input requirements include a 12 – 28 VDC wide range input @ nominal 19V and 4.4A.  Display technologies include 1x VGA @up to 1920 x 1200, 60Hz and 1x HDMI 2.0 @Up to 4096 x 2160, 60Hz and 1x iDP (optional).  4x USB 3.0 and 2x USB 2.0. Available wireless communication 1x 802.11a/b/g/n/ac 2T2R option.  Data storage is addressed with a 1x 2.5-inch SATA 6Gb/s HDD/SSD bay.

BGA1440 Skylake Processor

Intel® Core™ i7-6822EQ (8M Cache, 2.0/ 2.8 GHz, 25W TDP), Intel® Core™ i5-6442EQ (6M Cache, 1.9/ 2.7 GHz, 25W TDP)

Memory

4GB DDR4 Memory, 8GB DDR4 Memory, 16GB (2 x 8GB) DDR4 Memory, 32GB (2 x 16GB) DDR$ Memory

Internal HDD/SSD Data Storage

None, 2.5" SATA SSD 256GB, 2.5" SATA SSD 512GB, 2.5" SATA SSD 1TB, 2.5" SATA Hard Disk, 500GB, 7200RPM, 2.5" SATA Hard Disk, 1TB, 7200RPM

mSATA Data Storage

mSATA 250GB SSD, mSATA 500GB SSD, mSATA 1TB MLC SSD

Specifications

Column 1Column 2
ModelHTB-100-HM170-ix/4G-R10
System
ProcessorSupports Intel® 6th-Gen Core™ Skylake i7/i5 BGA1440 CPU
Intel® Core™ i7-6822EQ (2 GHz, quad-core, TDP=25)
Intel® Core™ i5-6442EQ (1.9 GHz, quad-core, TDP=25)
ChipsetIntel® HM170
Memory2 x 260-pin DDR4 SO-DIMM, one 4 GB pre-installed (system max: 32GB)
Communication
Wireless1 x 802.11a/b/g/n/ac 2T2R (optional)
I/O External
Ethernet2 x RJ-45 PCIe GbE by Intel® I211 controller
USB4x USB3.0
2x USB2.0
Video1x VGA up to 1920 x [email protected]
1x HDMI 2.0 up to 4096 x [email protected]
1 x iDP (optional)
Serial2 x RS-232 (DB-9, with 2.5 kV isolation)
2 x RS-232/422/485 (DB-9, with 2.5 kV isolation)
AudioRealtek ALC662, 5.1-channel High Definition Audio (HDA), Line-in, Line-out, Mic-in
Expansion Internal
PCIe1 x PCIe x16
Mini-PCIe1 x Half-size PCIe Mini
1 x Full-size Mini PCIe (supports mSATA, colay with SATA)
1 x Half-size Mini PCIe slot (reserved for WLAN)
M.21 x M.2 A & E key (2230/ USB or PCIe)
Storage
SATA HDD1 x 2.5" SATA 6Gb/s HDD/SSD bay
Power
DC InputDC Jack: 12~28V DC
Consumption[email protected] (Intel® Core™ i7-6822EQ with 4 GB memory)
AdapterVin:90~264VAC; 150W; Dim:85*170*42.5mm; Plug=6.5mm; Cable=1200mm; MEDICAL;
Vout:19VDC; Din 4Pin/lock; CCL; R10
Mechanical
Dimensions261 x 170 x 60 (WxHxD) (mm)
Weight2.4 kg / 3.8 kg (Net/Gross)
MountingWall mounting
Enclosure
MaterialExtruded aluminum alloy
Environmental
Operating Temperature0°C ~ 40°C with air flow (SSD), 10% ~ 95%, non-condensing
Storage Temperature-40°C ~ 70°C with air flow (SSD), 10% ~ 90%, non-condensing
Humidity10% ~ 95%, non-condensing
Operating ShockHalf-sine wave shock 5G; 11ms; 100 shocks per axis
Operating VibrationMIL-STD-810G 514.6 C-1 (with SSD)
CertificationsCE, FCC class B part 18, IEC 60601-1 V3.1, IEC 60601-1-2 V4.0, IEC 62304, ISO 14971
Supported OSMicrosoft® Windows 8, Microsoft® Embedded Standard 7
*For i7-8700 running at 65W mode, the highest operating temperature shall be limited to 50°C and thermal throttling may occur when sustained full-loading applied. Users can configure CPU power in BIOS to obtain higher operating temperature.
**For sub-zero operating temperature, a wide temperature HDD drive or Solid State Disk (SSD) is required.
