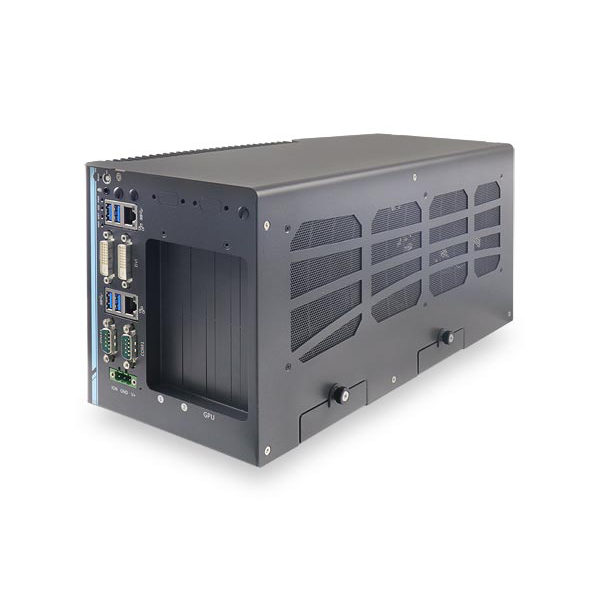

Rugged Vehicle Ignition Ready GPU-Accelerated 3584 CORE Computer

Nuvo-6108GC-IGN

The Nuvo-6108GC-IGN is one of the world’s first rugged industrial-grade in-vehicle GPU computing platforms supporting high-end graphics cards. Designed from the ground up to drive emerging GPU-Accelerated applications such as artificial intelligence, VR, autonomous driving and CUDA computing through its pre-installed GPU with 3584 cores and 11+ TFLOP capability for AI inference tasks. -25°C to 60°C extended operating temperature at 100% load to allow plenty of headroom for GPU operation.  The Nuvo-6108GC-IGN leverages the long life cycle Intel® Skylake CPU and C236 chipset to increase system availability and reduce recurring program costs over time.

  • 6th-Gen Skylake Core™ i7/ i5 LGA1151 CPU
  • Pre-installed MSi GeForce GTX 1080 Ti ARMOR 11G OC 250W Graphics card
  • Patented rugged thermal design for -25 °C to 60 °C operating temperature @100% load
  • 2x Gen3 PCIe x 8 slots for add-on cards
  • 2x GbE ports and 4x USB 3.0 ports
  • 3x 2.5″ SATA hard drives with RAID 0/ 1/ 5 support
  • Patented easy-swap trays for HDD replacement

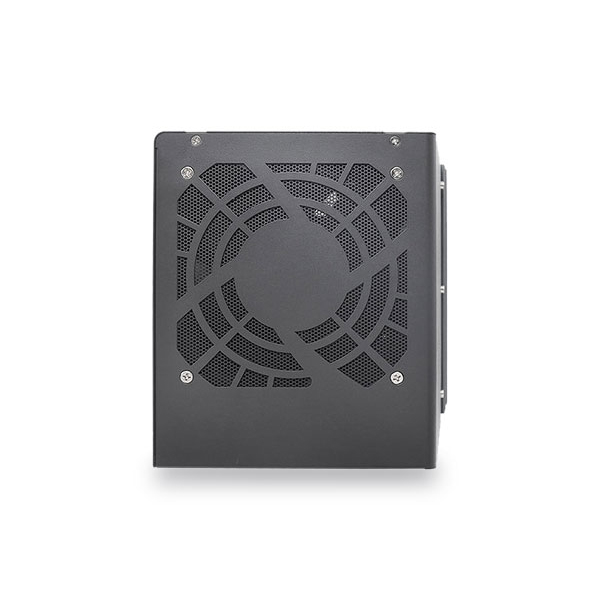

  • Automatic temperature sensing and fan control
  • Patented damping brackets to withstand 1 Grms vibration
  • Built-in ignition control
Description
Additional information
Specifications
Customize This Product
Reviews (0)















The Solution to Your Mobile GPU Challenge

Designed from the ground up for in-vehicle GPU-Accelerated computing, the Nuvo-6108GC-IGN task specific computer incorporates patented damping brackets to withstand 1 Grms vibration.  Built-in ignition control for easy vehicle interface. In addition, a patented tuned cold air intake dissipates heat generated by the GPU.  This unique design guarantees operation at 60°C with 100% GPU load, making the Nuvo-6108GC series extremely reliable for demanding field applications like in-vehicle computing.  Exceptional CPU thermal performance is achieved through automatic temperature sensing and fan control and an innovative thermal transfer system that conducts heat 10x better than traditional fanless designs. The Neousys thermal pad liquefies when heated by the CPU while springs push the CPU closer to the chassis heatsink for optimal heat transfer.

Patented Easy-Swap trays for HDD replacement                                     Patented damping brackets to withstand 1Grms vibration














Solid Performance & Staying Power

The pre-installed 3584 core MSi GeForce GTX 1080 Ti ARMOR 11G OC 250W Graphics card boasts over 11 TFLOPS (11+ trillion floating-point calculations per second) proving a solid platform for AI inference tasks.  A powerful long life cycle Intel® 6th-Gen Skylake Core™ CPU and C236 chipset minimizes year to year changes resulting in lower project support costs.  The dual channel DDR4-2133MHz memory boosts rendering, encoding, and transcoding/compiling applications speeds.  The Nuvo-6108GC-IGN manages 3x SATA-III ports (6 Gbps); 2 with patented Easy-Swap trays.

Nuvo-6108GC embedded computer installed in a Lincoln MKZ                              Perception demonstration in dreamview












Robust Connections with Tailored I/O

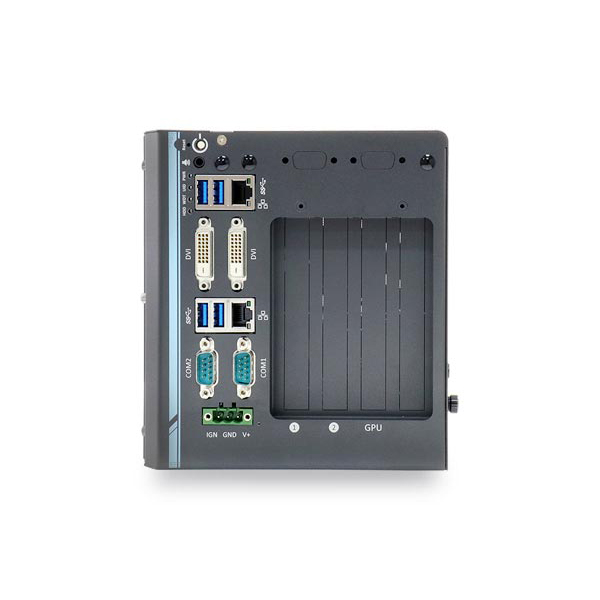

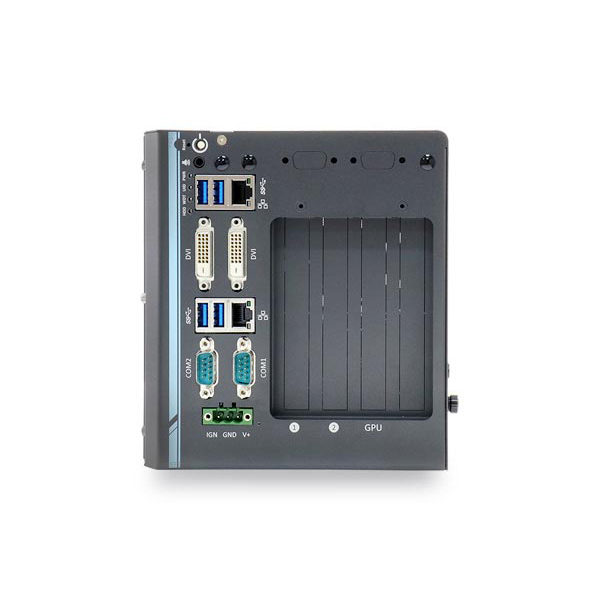

Three 2.5″ SATA hard drives with RAID 0/ 1/ 5 support.  2x GbE ports and 4x USB3.0 ports.  Patented Easy-Swap trays for HDD replacement.  The expansion bus consists of 2x Gen3 PCIe x 8 slots for high performance cards with large bandwidth for data collection, analytics, and communication.  1x Gen3 PCIe x16 slot utilized by GPU.  Built-in ignition power control and terminal block for vehicle environments.  1x M.2 B key socket for 3G/4G options utilizing SIM socket.  1x full-size mini PCI express socket. 2x DVI-D video outputs @1920×1200 resolution.  2x Software-programmable RS-232/ 422/ 485 ports.  System remote on/off control and LED status indicator.

Socket 1151 Skylake Processor

Intel® Core™ i7-6700 (8M Cache, 2.4/ 3.4 GHz, 35W TDP), Intel® Core™ i5-6500 (6M Cache, 2.3/ 3.3 GHz, 35W TDP), Intel® Core™ i3-6300 (4M Cache, 3.3 GHz, 35W TDP)

Pre-installed Graphics Card

MSi GeForce GTX 1080 Ti ARMOR 11G OC Graphics Card

Memory

4GB DDR4 Memory, 0 – 85 °C Operating Temperature, 8GB DDR4 Memory, 0 – 85 °C Operating Temperature, 16GB DDR4 Memory, 0 – 85 °C Operating Temperature

Internal SSD/HDD Data Storage

2.5" SATA Hard Disk, 500GB, 7200RPM, 2.5" SATA Hard Disk, 1TB, 7200RPM, 2.5" 256GB MLC SSD, Operating temperature : 0 to 70 °C, 2.5" 512GB MLC SSD, Operating temperature : 0 to 70 °C, 2.5" SATA SSD 1TB TLC 0~70°C, None

1st External SSD/HDD Data Storage

2.5" SATA Hard Disk, 500GB, 7200RPM, 2.5" SATA Hard Disk, 1TB, 7200RPM, 2.5" 256GB MLC SSD, Operating temperature : 0 to 70 °C, 2.5" 512GB MLC SSD, Operating temperature : 0 to 70 °C, 2.5" SATA SSD 1TB TLC 0~70°C

2nd External SSD/HDD Data Storage

2.5" SATA Hard Disk, 500GB, 7200RPM, 2.5" SATA Hard Disk, 1TB, 7200RPM, 2.5" 256GB MLC SSD, Operating temperature : 0 to 70 °C, 2.5" 512GB MLC SSD, Operating temperature : 0 to 70 °C, 2.5" SATA SSD 1TB TLC 0~70°C, None

Power Adapter

480W AC-DC Power Adapter, None

Specifications

Column 1Column 2
ModelNuvo-6108GC-IGN-GTX1080Ti-ixQC
System
ProcessorSupports Intel® 6th-Gen Core™ Skylake LGA 1151 CPU
Intel® Core™ i7-6700TE (8M Cache, 2.4/ 3.4 GHz, 35W TDP)
Intel® Core™ i5-6500TE (6M Cache, 2.3/ 3.3 GHz)
ChipsetIntel® C236 Platform Controller Hub
GraphicsMSi GeForce GTX 1080 Ti ARMOR 11G OC Graphics Card
MemoryUp to 32 GB ECC/ non-ECC DDR4-2133
I/O External
Ethernet1x Gigabit Ethernet port (via Intel I219-LM)
2x Gigabit Ethernet port (via Intel I210-IT)
USB4X USB 3.0 ports
Video2x DVI-D connectors for DVI outputs,supporting 1920x1200 resolution
Serial2x software-programmable RS-232/ 422/ 485 ports
Audio1x Speaker-out
Expansion
PCI Express1x PCIe x16 slot @ Gen3, 16-lanes PCIE signals for GPU 2x PCIe x8 slot @ Gen3, 4-lanes PCIE signals
Mini-PCIe1x full-size mini PCI Express socket
M.21x M.2 B keyed socket for 3G/4G SIM socket
USB1x internal USB2.0 port
Remote Ctrl. & Status Output1x 2x6-pin 2.0mm pin-header connector for remote on/off control and status LED output
Storage
SATA HDD2x easy-swap HDD trays for 2.5" HDD/SSD installation
MSATA1x full-size mSATA socket
Power
DC Input24 VDC
Remote Ctrl. & Status Output1x 2x6-pin 2.0mm pin-header connector for remote on/off control and status LED output
Mechanical
Dimensions178 mm (W) x 360 mm (D) x 174 mm (H)
Weight4.7 kg (incl. CPU, GPU, memory and HDD)
MountingWall-mounting with damping brackets
Environmental
Operating Temperature-25°C ~ 60°C with 100% CPU/GPU loading */**
Storage Temperature-40°C ~ 85°C
Humidity10%~90% , non-condensing
VibrationOperating, 1 Grms, 5-500 Hz, 3 Axes (w/ GPU, fan and HDD), according to IEC60068-2-64)
CertificationsCE/FCC Class A, according to EN55022, EN55024 & EN55032
*The 100% CPU loading is applied using Passmark® BurnInTest 8.1.
**For sub-zero operating temperature, a wide temperature HDD drive or Solid State Disk (SSD) is required
